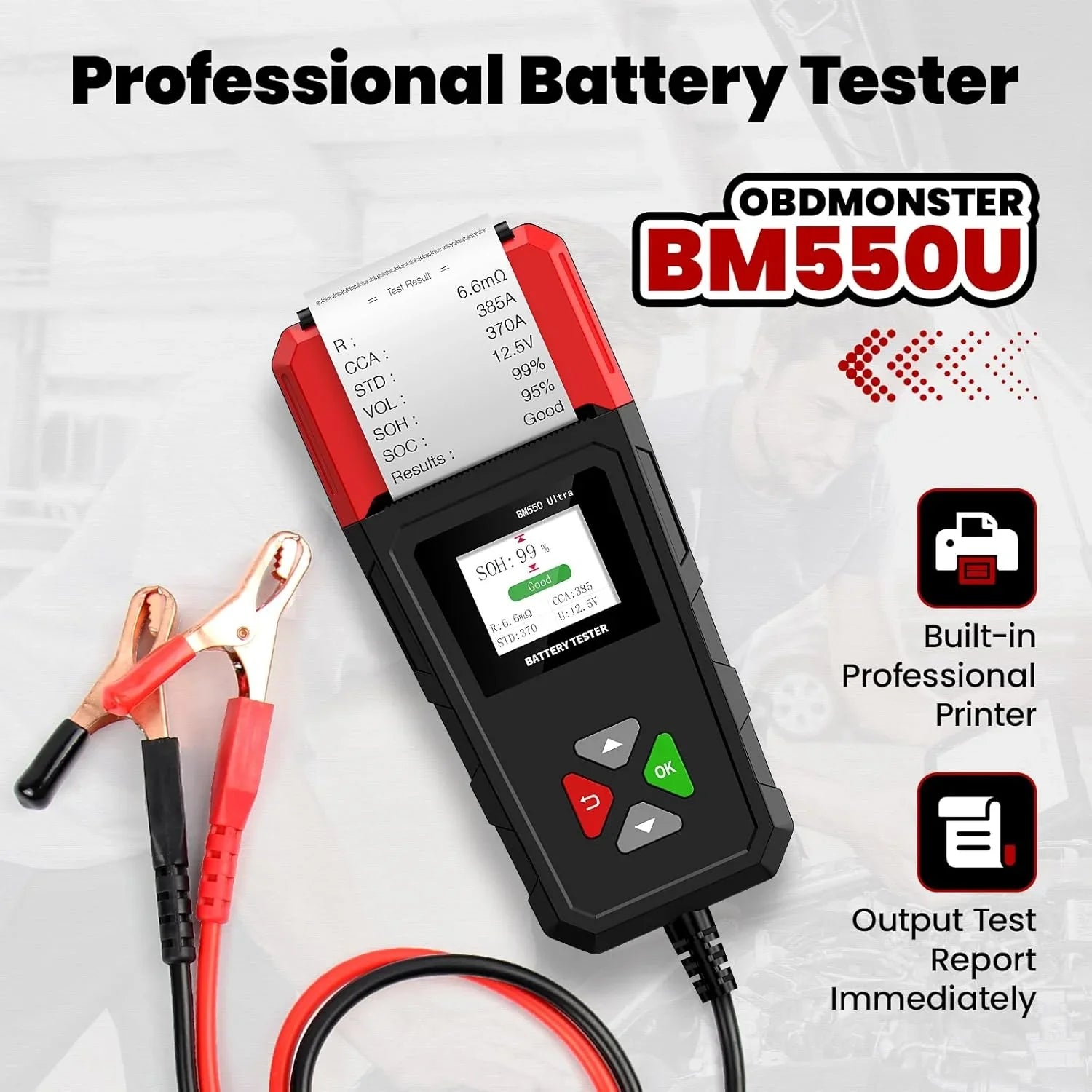

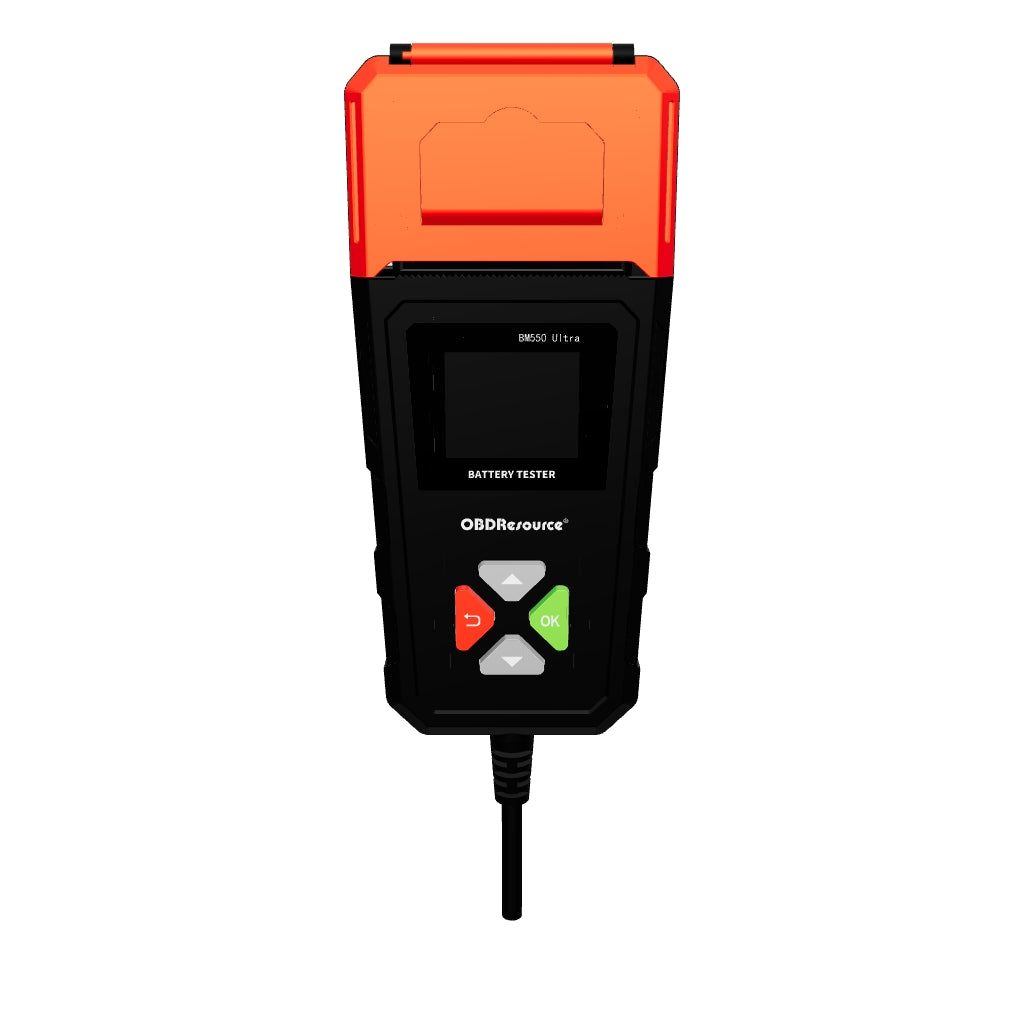

OBDResource BM550U Battery Tester with Built-In Printer
Product Overview
Test, understand, and document battery condition with one compact tool. The OBDResource BM550U is a digital automotive battery analyzer designed for compatible 6V, 12V, and 24V lead-acid batteries rated from 100 to 2000 CCA.

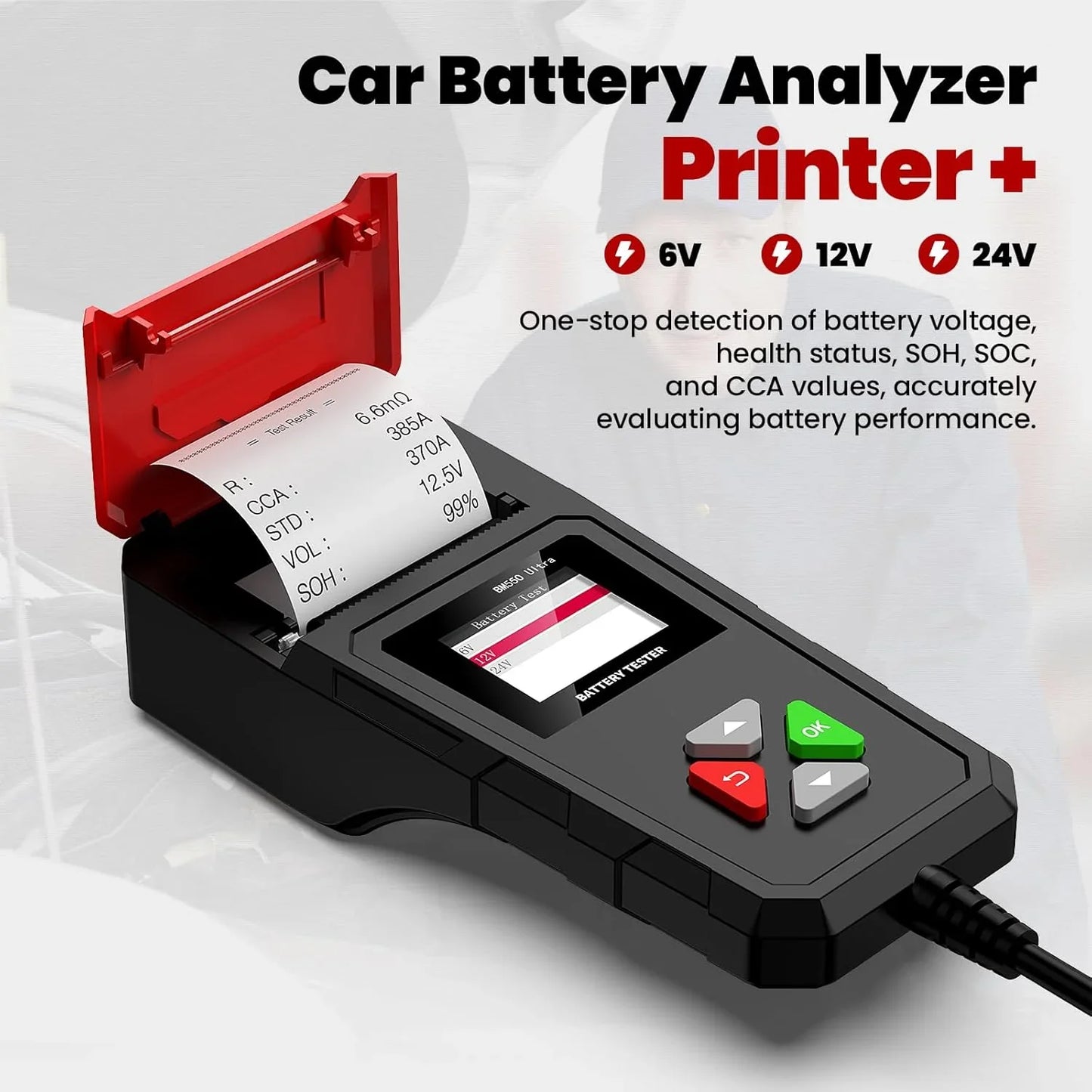

The BM550U measures battery voltage, State of Health (SOH), State of Charge (SOC), available CCA, and internal resistance. Results are shown clearly on the 1.8-inch color display, while the built-in thermal printer produces a paper report for customers, maintenance records, or before-and-after comparisons. It also supports AH-to-CCA conversion and real-time voltage waveform monitoring.
Key Features

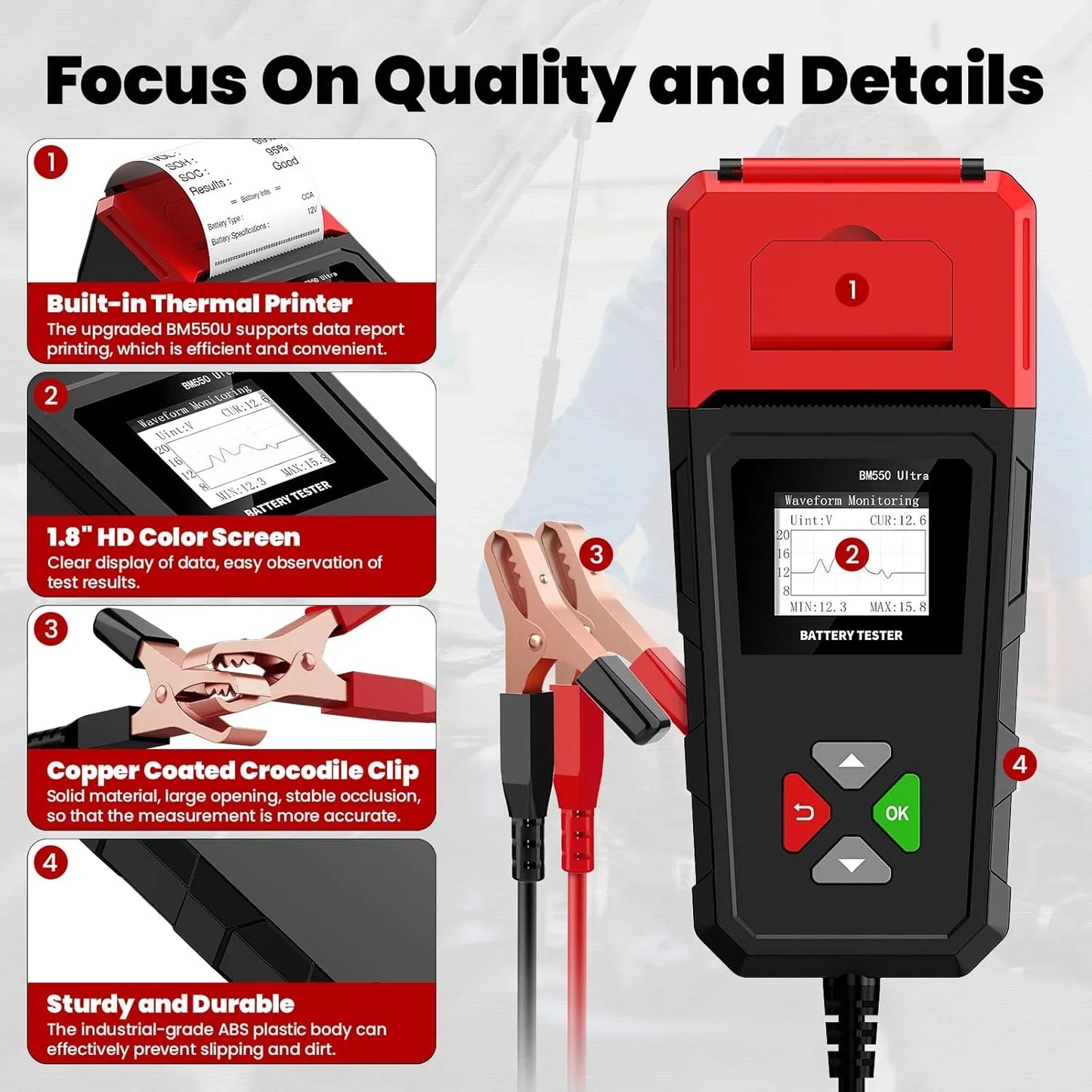

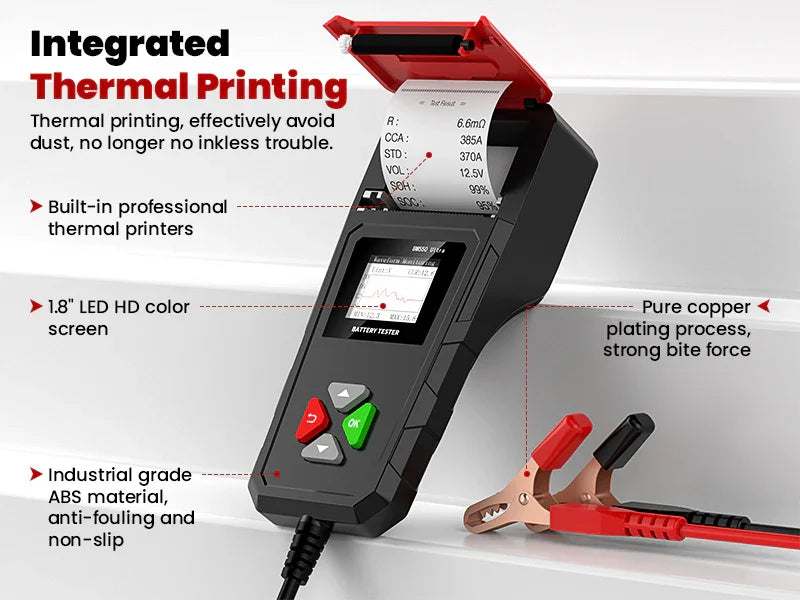

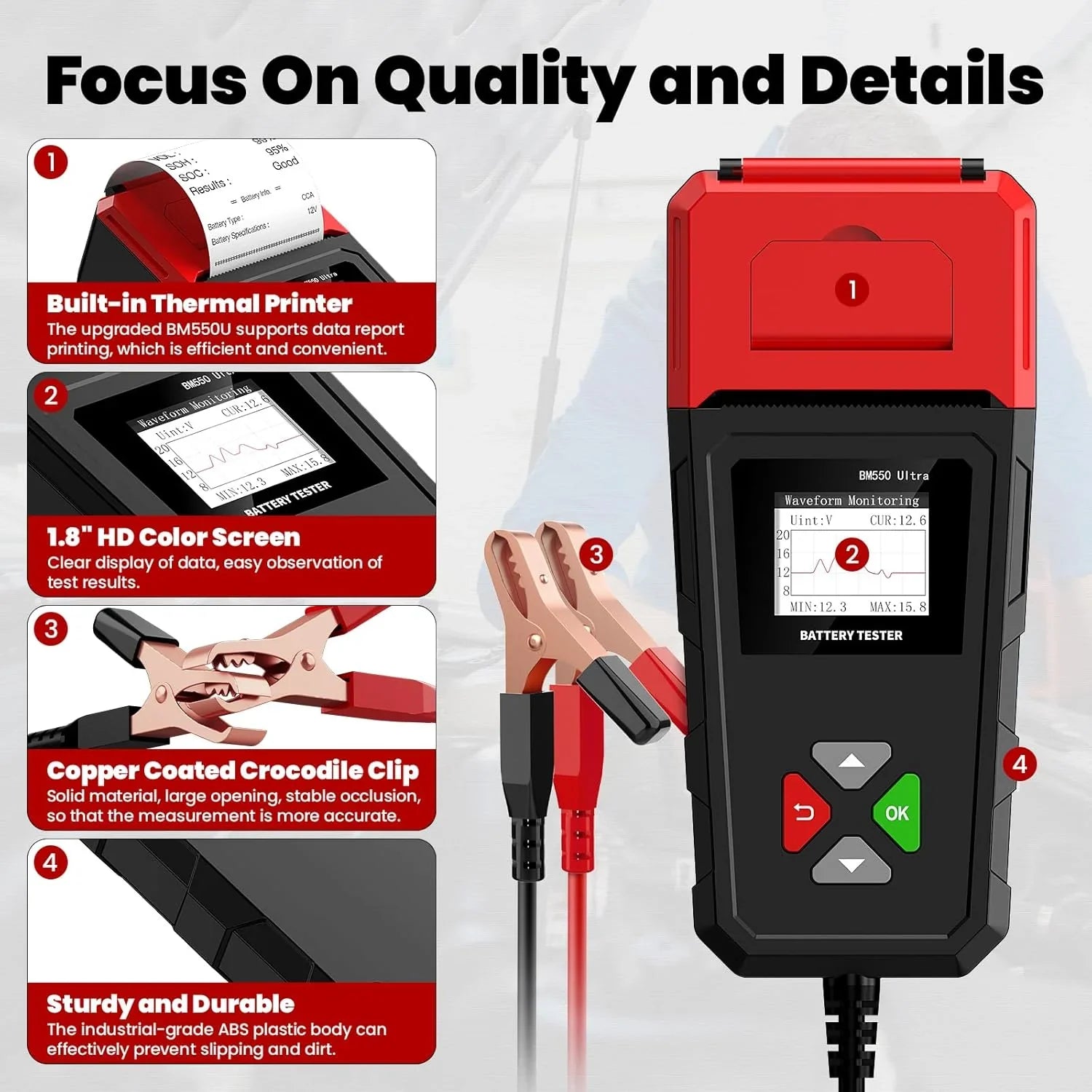

- Built-In Thermal Printer – Print battery test results directly from the tester for convenient record keeping and customer reports.

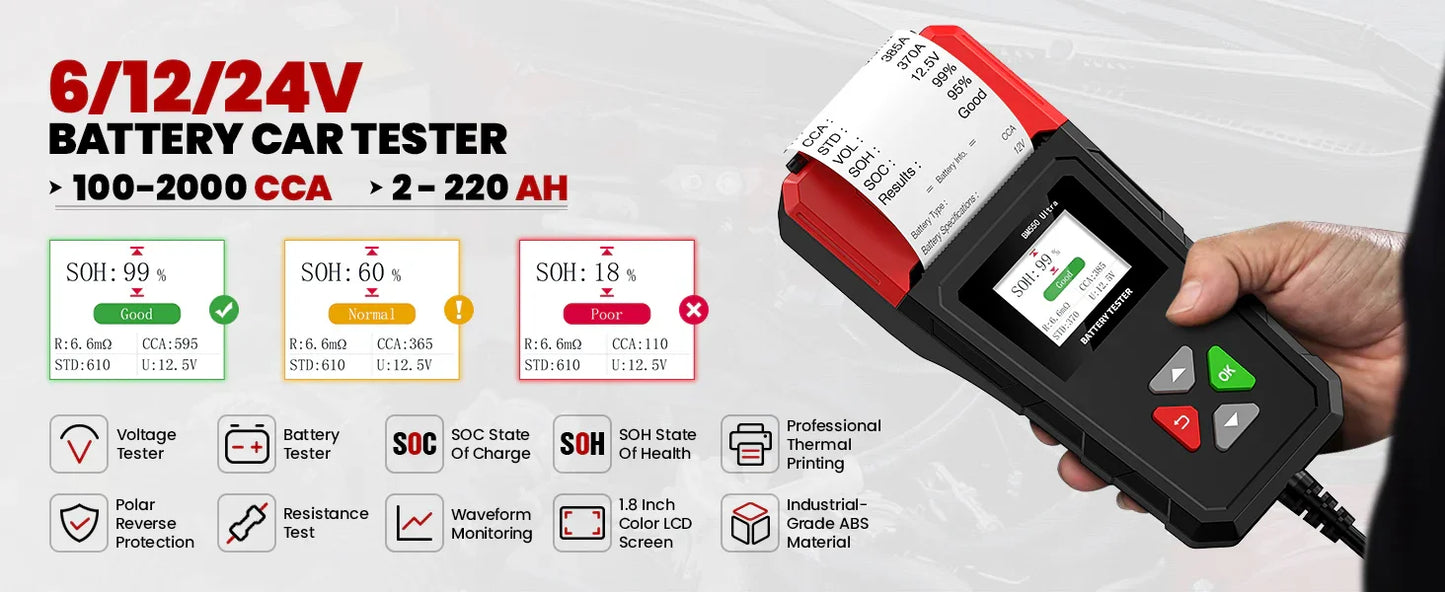

- 6V, 12V & 24V Battery Testing – One tester covers a wide range of passenger, powersport, marine, RV, and commercial vehicle batteries.
- 100–2000 CCA Test Range – Suitable for testing compatible batteries from smaller starting applications to larger truck and equipment batteries.
- Complete Battery Health Data – View voltage, SOH, SOC, measured CCA, rated CCA, internal resistance, and an overall battery condition result.
- AH-to-CCA Conversion – Enter a known capacity from 2Ah to 220Ah to obtain the corresponding CCA reference without checking a separate conversion chart.
- Voltage Waveform Monitoring – Observe voltage changes visually and review minimum, maximum, and current voltage values on the screen.
- 1.8-Inch Color Display – Clear menus and easy-to-read results support fast testing in the garage, workshop, or field.
- In-Vehicle or Off-Vehicle Testing – Test a compatible battery while installed in the vehicle or after it has been removed.
- Heat- and Cold-Resistant Design – Designed for use in working environments from −20°C to 50°C (−4°F to 122°F).
Applications
- Checking battery health before seasonal storage or a long trip
- Identifying weak, discharged, or aging batteries before replacement
- Printing test reports for repair-shop customers and service records
- Evaluating battery condition during vehicle inspections and routine maintenance
- Comparing battery readings before and after charging or service

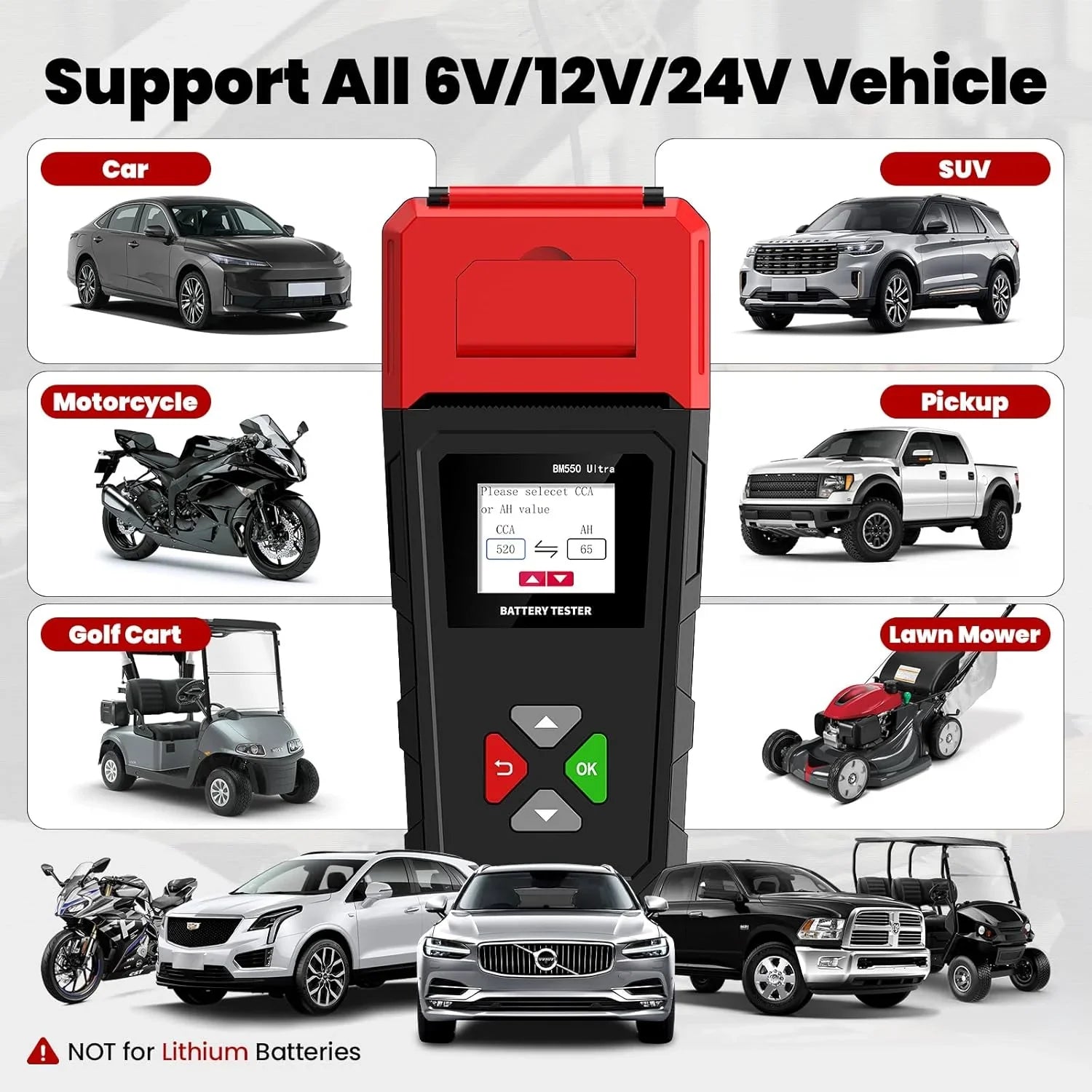

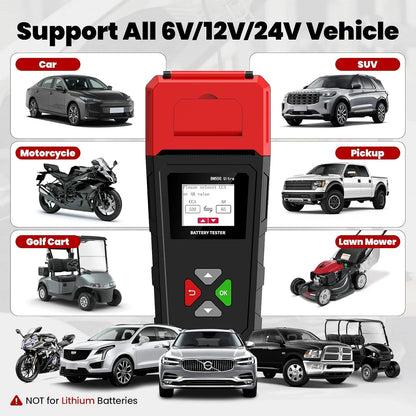

- Testing batteries for cars, pickup trucks, SUVs, motorcycles, ATVs, RVs, boats, trucks, golf carts, and lawn equipment
- Use by vehicle owners, repair shops, battery distributors, and battery service professionals
Compatibility
The BM550U is compatible with 6V, 12V, and 24V lead-acid batteries rated from 100 to 2000 CCA. Supported battery constructions include:
- Conventional flooded lead-acid batteries
- AGM flat-plate batteries
- AGM spiral-wound batteries
- GEL batteries
It can be used with compatible batteries installed in cars, motorcycles, ATVs, SUVs, pickup trucks, commercial trucks, RVs, boats, golf carts, and lawn mowers. Always select the battery’s actual voltage, type, and rating shown on its label before testing.
Not intended for lithium batteries. Vehicle type alone does not determine compatibility; the installed battery must fall within the supported voltage, chemistry, and rating range.

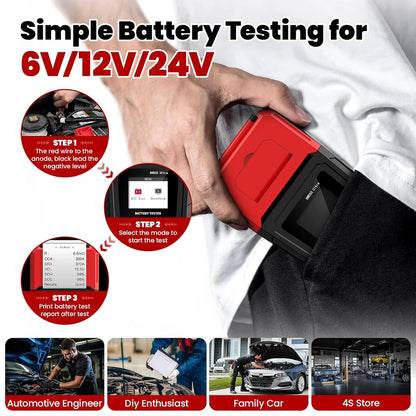

How to Use
- Check the battery label. Confirm the battery voltage, construction type, and rated CCA before beginning the test.

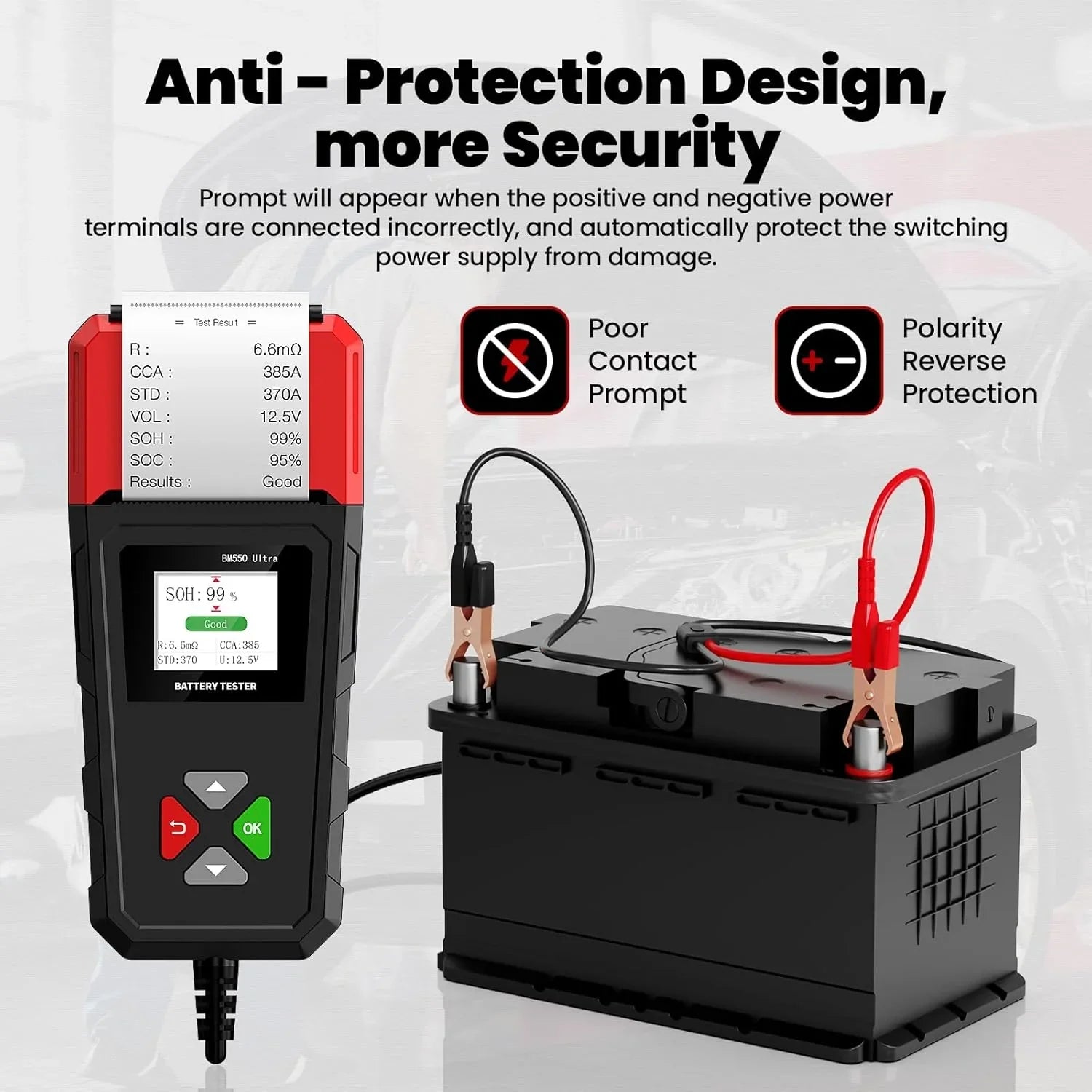

- Connect the clamps. Attach the red clamp to the positive (+) terminal and the black clamp to the negative (−) terminal. Make sure both clamps contact clean metal securely.
- Select Battery Test. Choose 6V, 12V, or 24V, then select the correct battery type and enter the rating shown on the battery label.

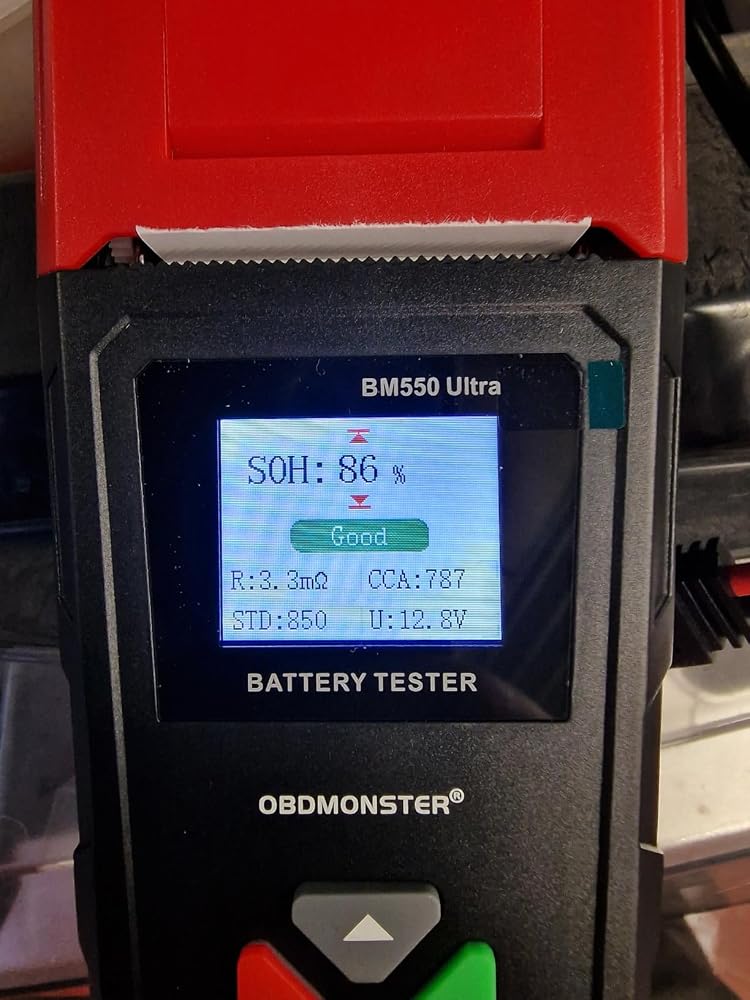

- Review the results. Read voltage, SOH, SOC, CCA, internal resistance, and the overall condition displayed on the color screen.

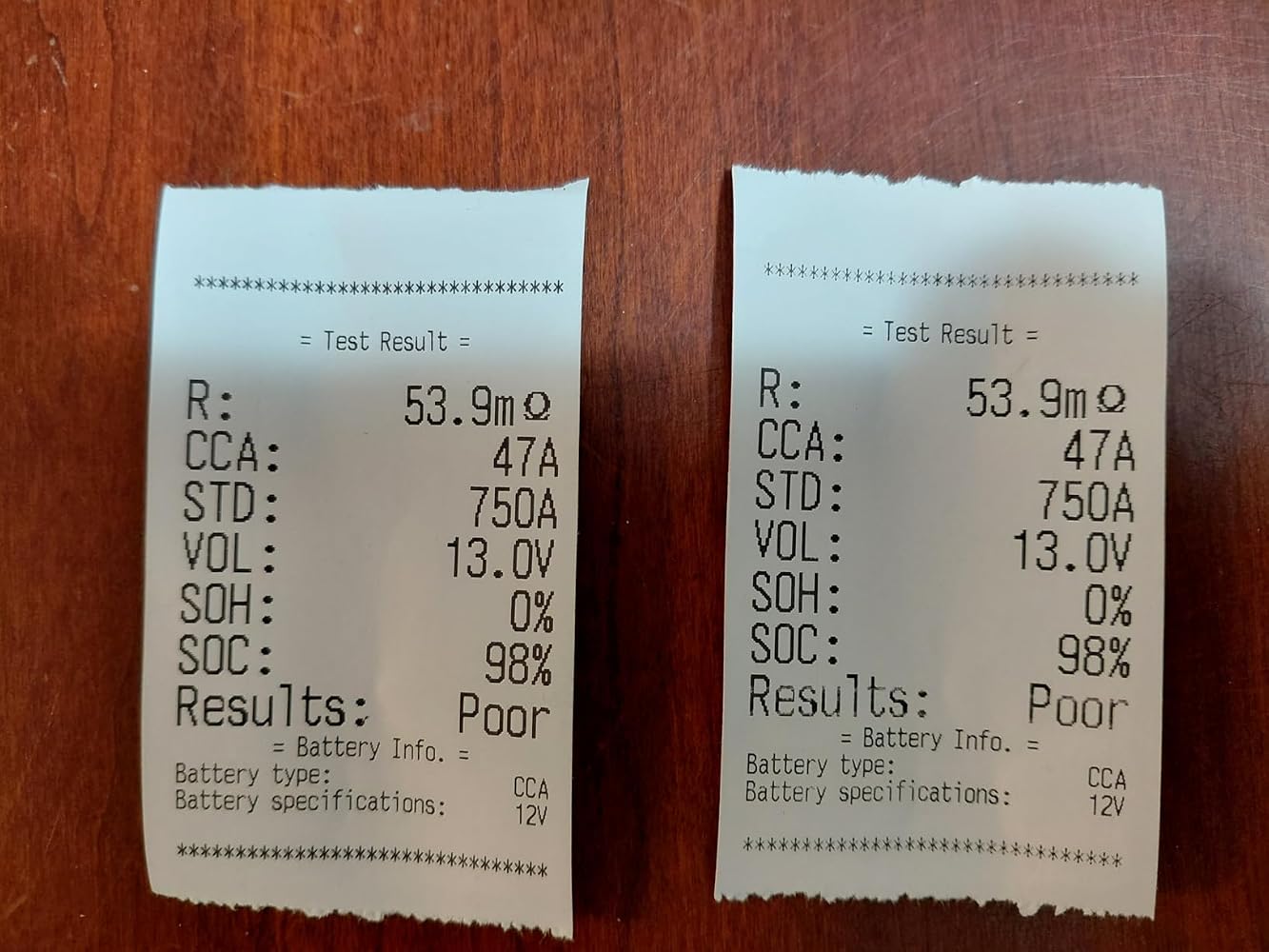

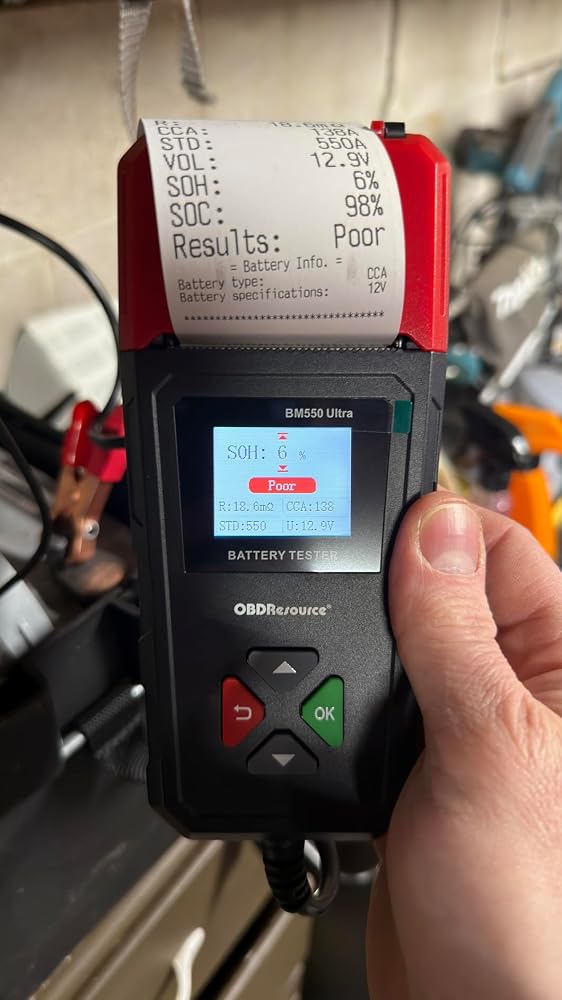

- Print the report. Use the built-in thermal printer to create a physical copy of the test results when needed.
- Use additional functions as required. Select CCA/AH conversion when only an AH value is available, or open Waveform Monitoring to observe voltage changes over time.
Technical Specifications
| Brand | OBDResource |
|---|---|
| Model | BM550U |
| Product Type | Digital automotive battery analyzer with thermal printer |
| Supported Battery Voltages | 6V / 12V / 24V |
| Battery Rating Range | 100–2000 CCA |
| Supported Battery Types | Flooded lead-acid, AGM flat plate, AGM spiral, GEL |
| Battery Test Data | Voltage, SOH, SOC, measured CCA, rated CCA, internal resistance, overall condition |
| AH-to-CCA Input Range | 2Ah–220Ah |
| Waveform Function | Real-time voltage waveform with current, minimum, and maximum voltage reference |
| Display | 1.8-inch color LCD |
| Printer | Built-in thermal printer |
| Testing Location | In-vehicle and off-vehicle |
| Working Temperature | −20°C to 50°C / −4°F to 122°F |
What’s in the Box

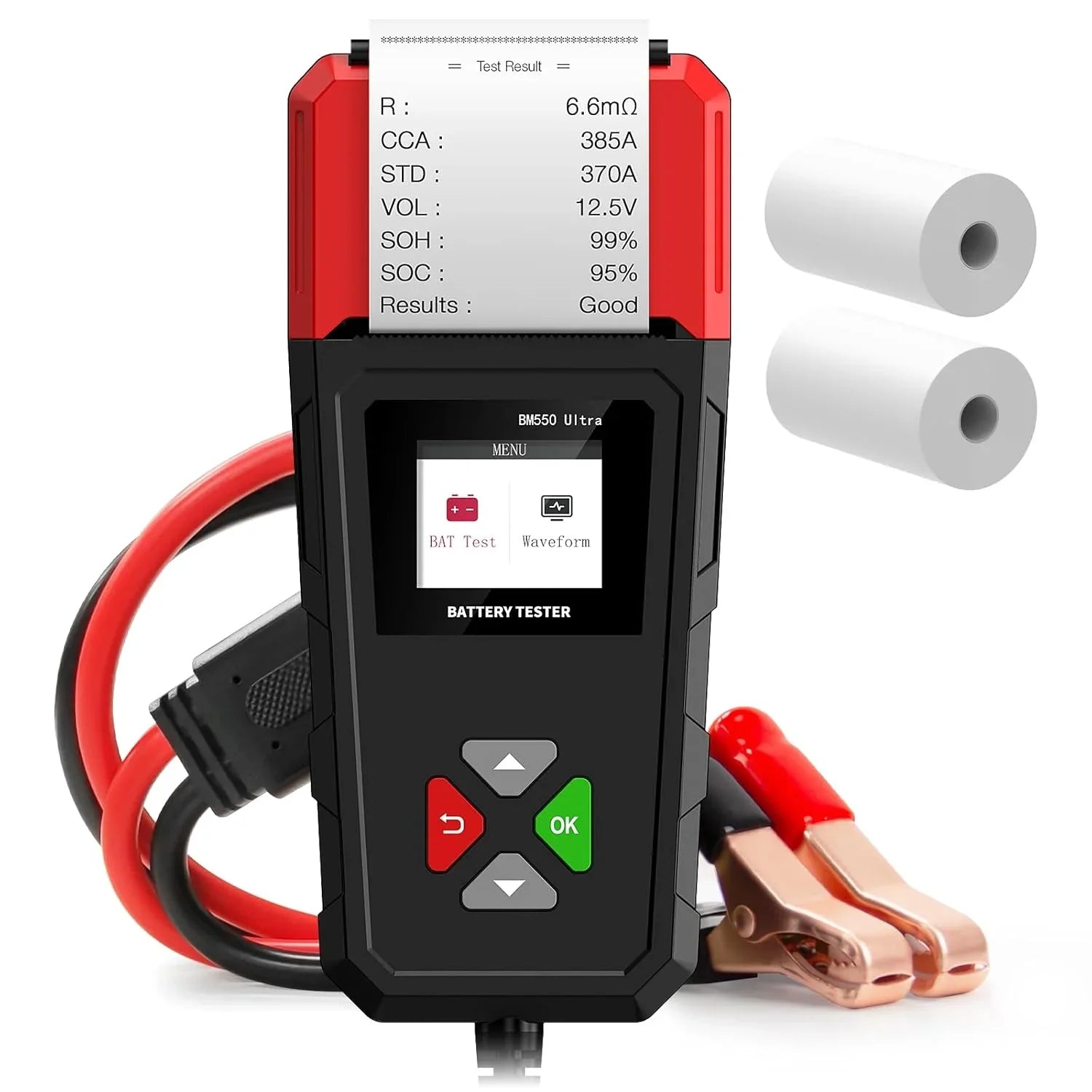

- 1 × OBDResource BM550U Battery Tester with built-in thermal printer
- 1 × Integrated test cable with red and black battery clamps
- 2 × Thermal paper roll
- 1 × Quick Start Guide
- 1 × User manual
Package contents may vary by production batch. Please refer to the package received for the final contents.
Important Notes
- Use only on supported 6V, 12V, or 24V lead-acid batteries within the 100–2000 CCA range.
- This tester is not designed for lithium-ion, LiFePO4, or other lithium battery chemistries.
- Enter the battery rating printed on the battery label. An incorrect voltage, battery type, or rating can produce misleading results.
- Clean corroded or dirty terminals and ensure solid clamp contact before testing.
- The AH-to-CCA result is a conversion reference. Battery design and manufacturer specifications can affect the relationship between AH and CCA.
- The voltage waveform provides a visual reference for voltage changes; it is not a full laboratory oscilloscope or a substitute for complete charging-system diagnosis.
- Battery condition should be evaluated together with symptoms, battery age, charge level, and the vehicle manufacturer’s service information.
FAQ
Can the BM550U test 6V, 12V, and 24V batteries?
Yes. Select the correct voltage before testing and confirm that the battery is a supported lead-acid type rated within 100–2000 CCA.
Which battery types are supported?
The BM550U supports conventional flooded lead-acid, AGM flat-plate, AGM spiral-wound, and GEL batteries. It is not intended for lithium batteries.
What information appears in the battery test?
The tester displays voltage, State of Health, State of Charge, measured CCA, rated CCA, internal resistance, and an overall battery condition result.
Can I print the results immediately?
Yes. The built-in thermal printer lets you print a test report directly from the BM550U without connecting it to a separate printer.
Can the battery be tested while it is still installed?
Yes. The BM550U supports both in-vehicle and off-vehicle battery testing. Turn off vehicle accessories and follow the operating instructions before testing.
What does the AH-to-CCA function do?
Enter a known capacity between 2Ah and 220Ah to obtain a corresponding CCA reference. Because AH and CCA measure different battery characteristics, use the battery manufacturer’s stated CCA whenever it is available.
Does waveform monitoring test the alternator?
It displays battery voltage changes as a waveform and shows current, minimum, and maximum voltage values. These readings can provide a useful visual reference, but they do not replace a complete starting and charging system test.
Does the tester require separate batteries?
No separate household batteries are required during normal use; the tester is powered through its connection to the battery being tested.
PRODUCT OWNERSHIP
Resources & Support
Find product documentation, available updates and technical help.
CHOOSE THE RIGHT MODEL
Compare Models
Compare the specifications that matter for your application.
| Comparison | Current ModelBM550U $59.99 USD | BM550 $25.99 USD | BM520 $79.00 USD |
|---|---|---|---|
| Voltage | 6V / 12V / 24V | 6V / 12V / 24V | 6V / 12V / 24V |
| CCA Range | 100-2000 CCA | 100-2000 CCA | 100-2000 CCA |
| Battery Types | Regular Flooded, AGM Flat Plate, AGM Spiral, GEL, and EFB | Regular Flooded, AGM Flat Plate, AGM Spiral, GEL, and EFB | Regular Flooded, AGM Flat Plate, AGM Spiral, GEL, and EFB |
| System Tests | SOC/ SOH/ Voltage/ Resistance /Waveform Monitoring | SOC/ SOH/ Voltage/ Resistance | SOC/ SOH/ Voltage/ Resistance/ Loading Test/ Crank Test/ Loading Test/ Waveform Monitoring/ Data Review/ |
| Display | 1.8-in HD color display | 1.8-in HD display | 2.4-in HD color display |
| Key Capability | Built-in thermal printer | Three-Step Test Result | Live waveform and non-polarity connection |
