Product Description
The OBDResource BX100 OBD-II Breakout Box & CAN Protocol Detector is a professional automotive diagnostic tool designed to give technicians full access to vehicle OBD-II connectors for advanced testing, protocol detection, voltage monitoring, and ECU bench diagnostics. Featuring short circuit protection, constant voltage output, and a complete set of 12 flexible extension cables, this breakout box simplifies circuit testing and enhances safety during electrical diagnostics.

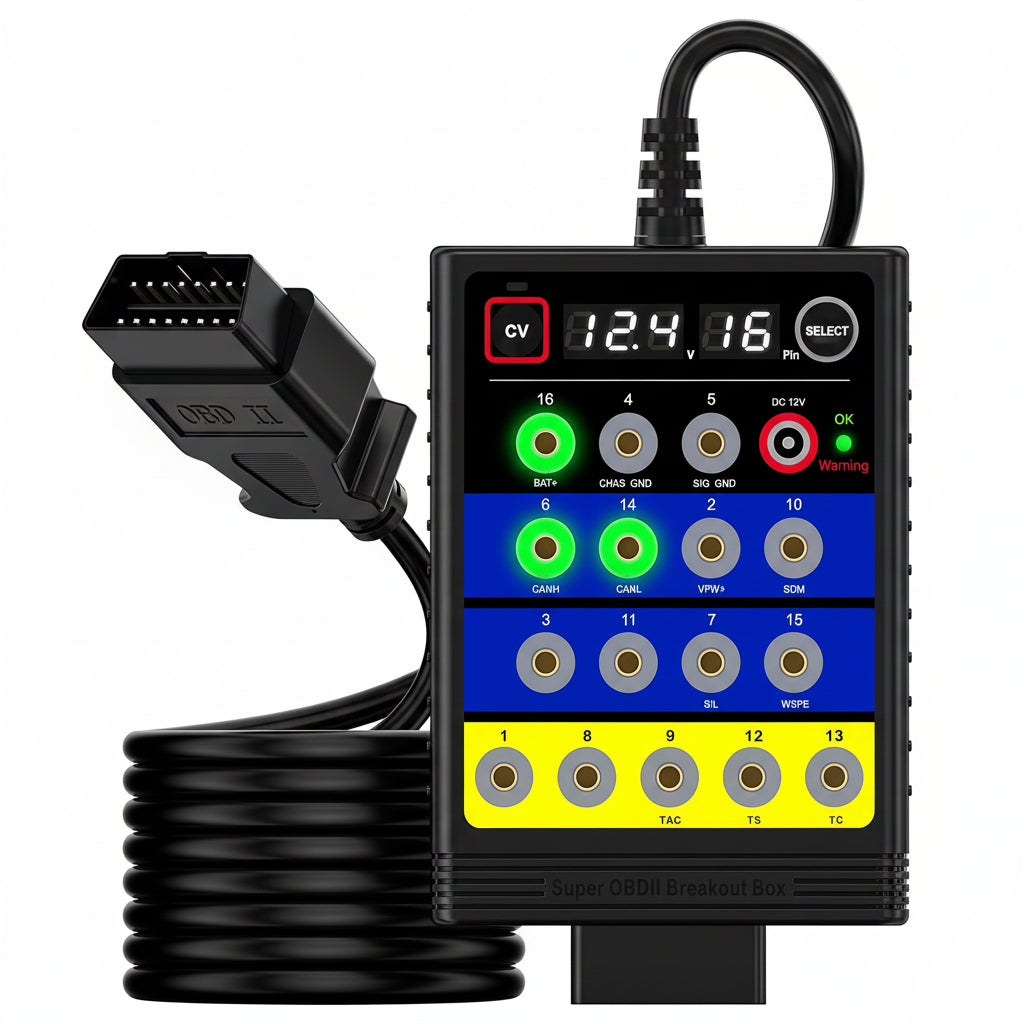

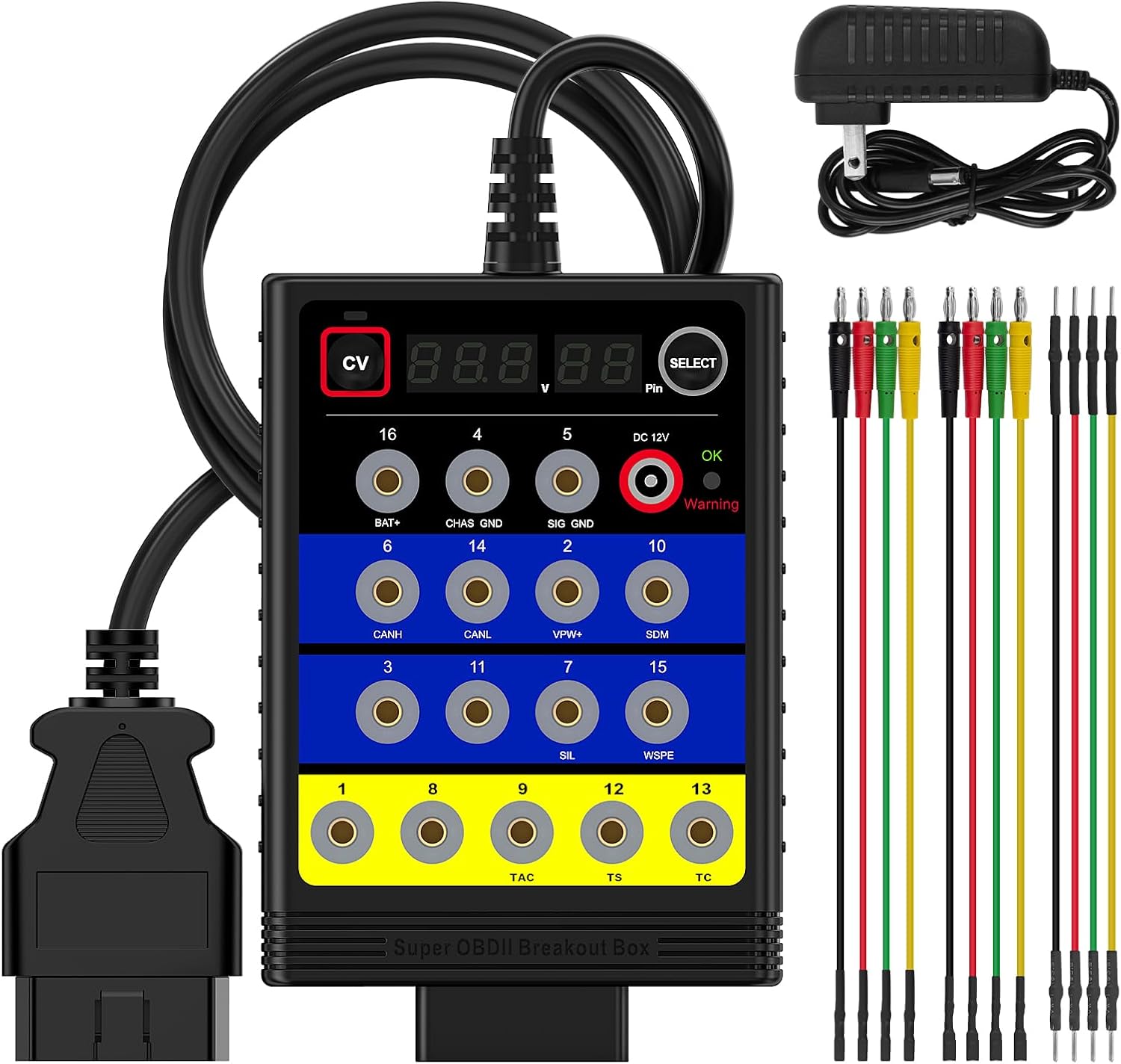

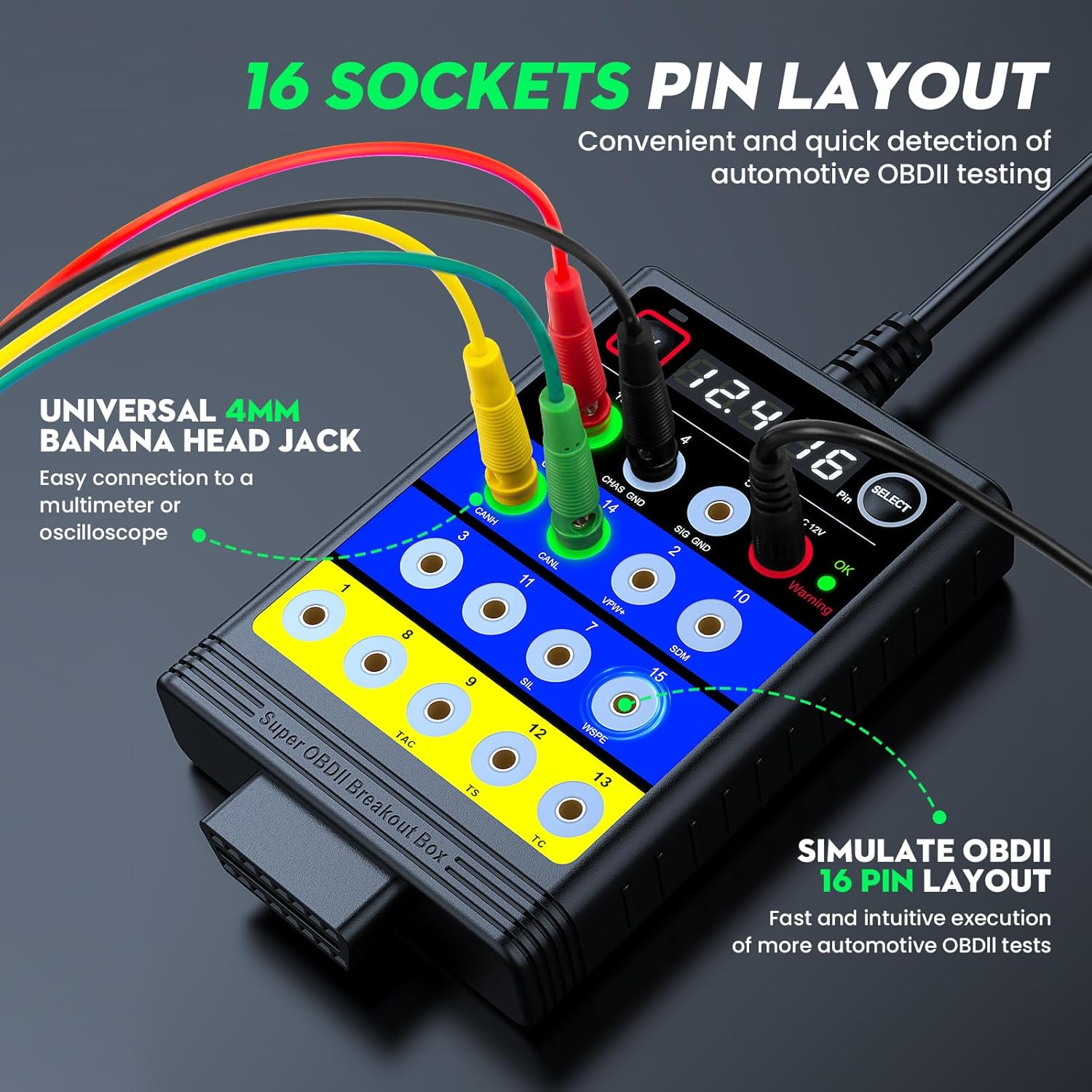

The breakout box mirrors the full 16-pin OBD-II interface layout, allowing you to easily connect test equipment such as multimeters, oscilloscopes, or scan tools for real-time signal analysis. With advanced features like constant 13.8V voltage mode, this diagnostic tool provides stable power output for ECU programming, component checks, and system validation.
Designed for professional automotive technicians, repair shops, and advanced DIY enthusiasts, the BX100 combines safety, functionality, and versatility in one compact diagnostic unit.
Key Features
🔌 OBD-II Breakout & Protocol Detector
Provides direct access to all pins on the OBD-II diagnostic port, enabling quick measurement of signal lines, voltage levels, and communication protocols across CAN-BUS systems.
📊 Constant Voltage Mode (13.8V Output)

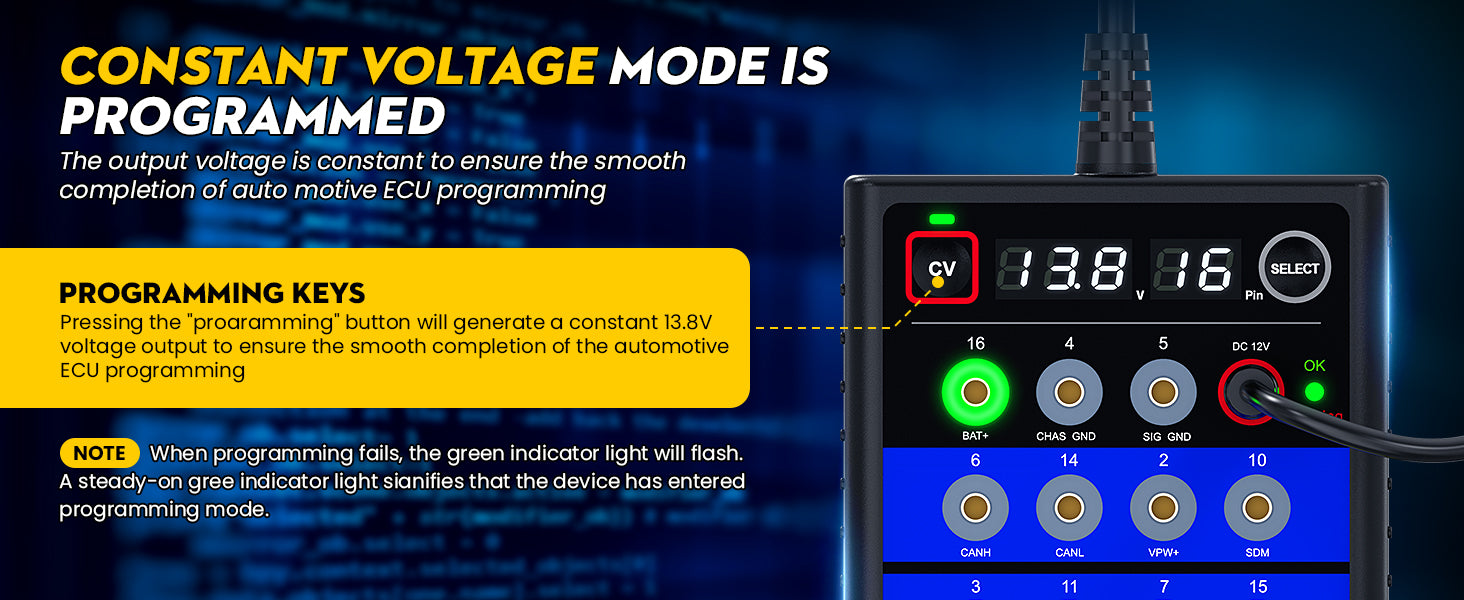

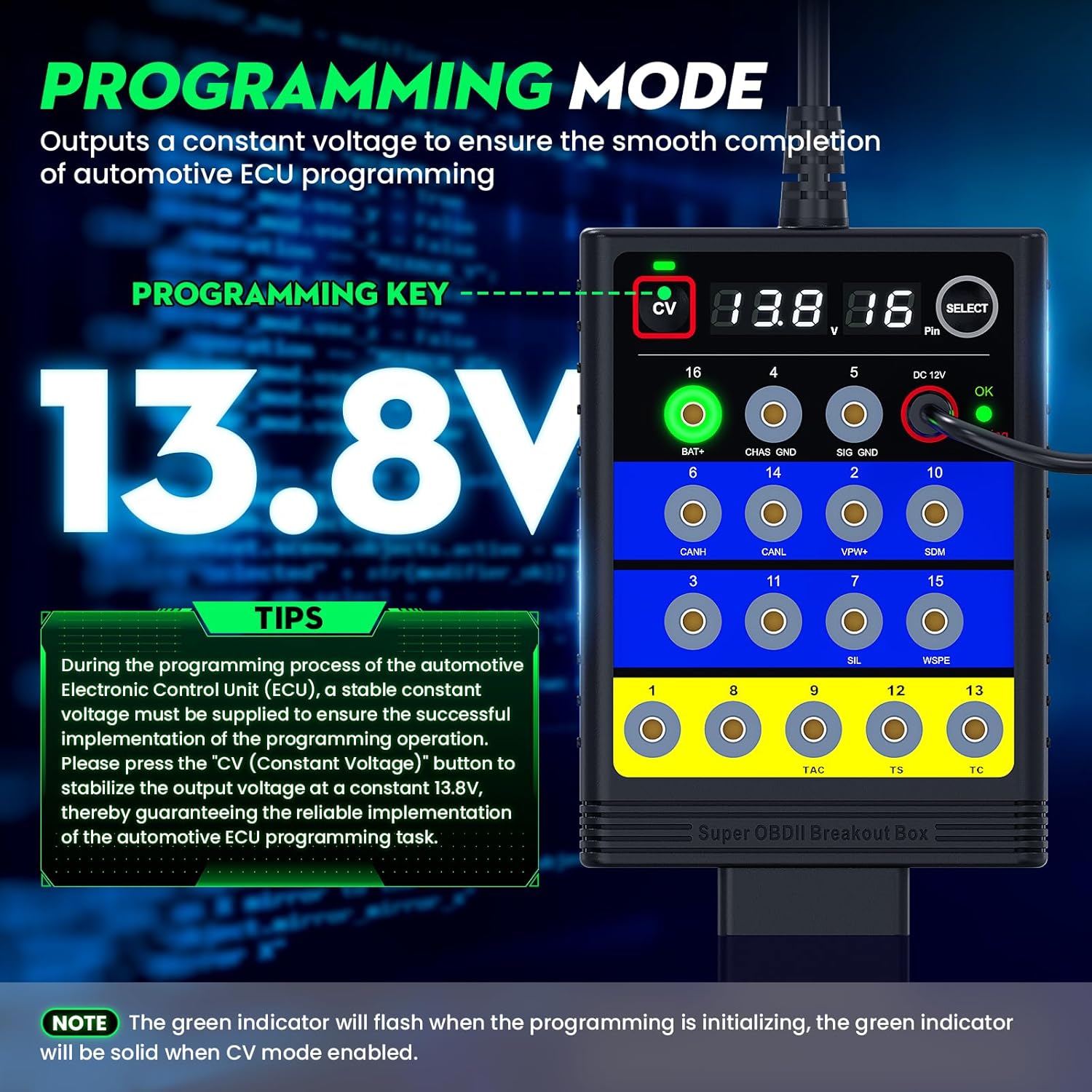

When activated, the constant voltage output ensures a steady 13.8V supply, ideal for ECU bench testing, programming modules, or powering automotive electronics during diagnostics.
⚡ Short Circuit Protection
Built-in protection safeguards the device and vehicle electronics from accidental electrical faults, helping prevent damage during testing and improving workshop safety.
🧰 Complete Extension Cable Kit

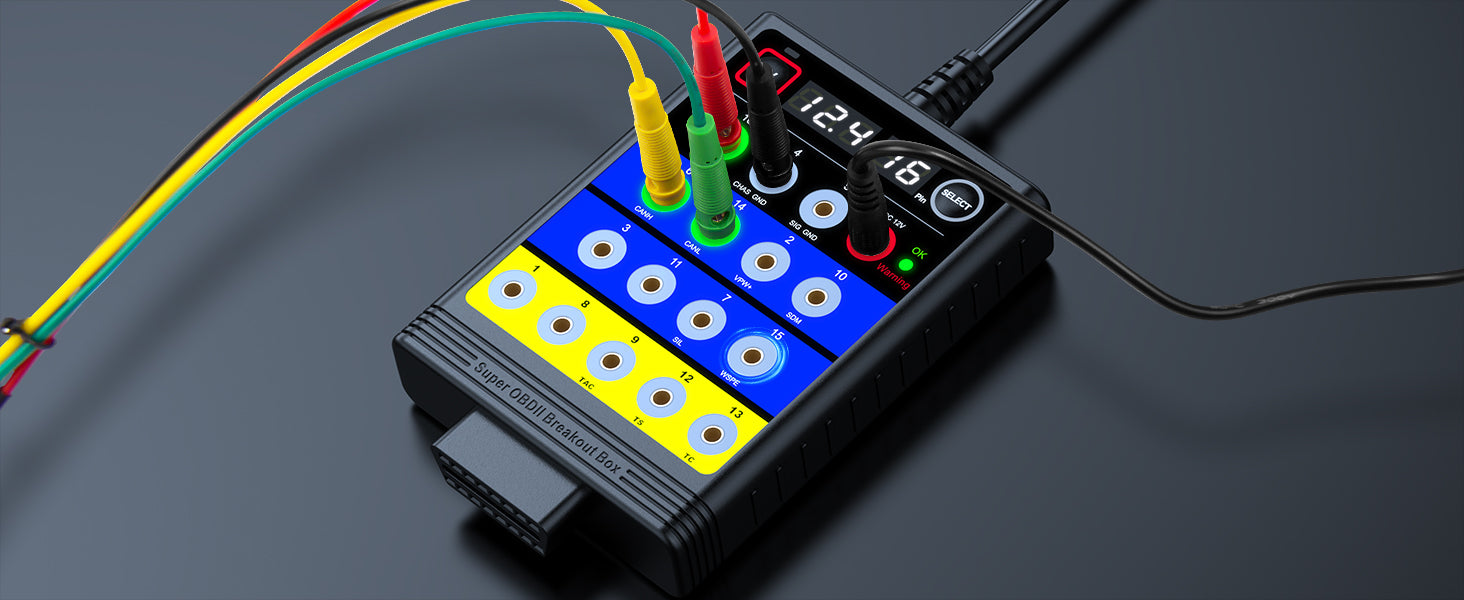

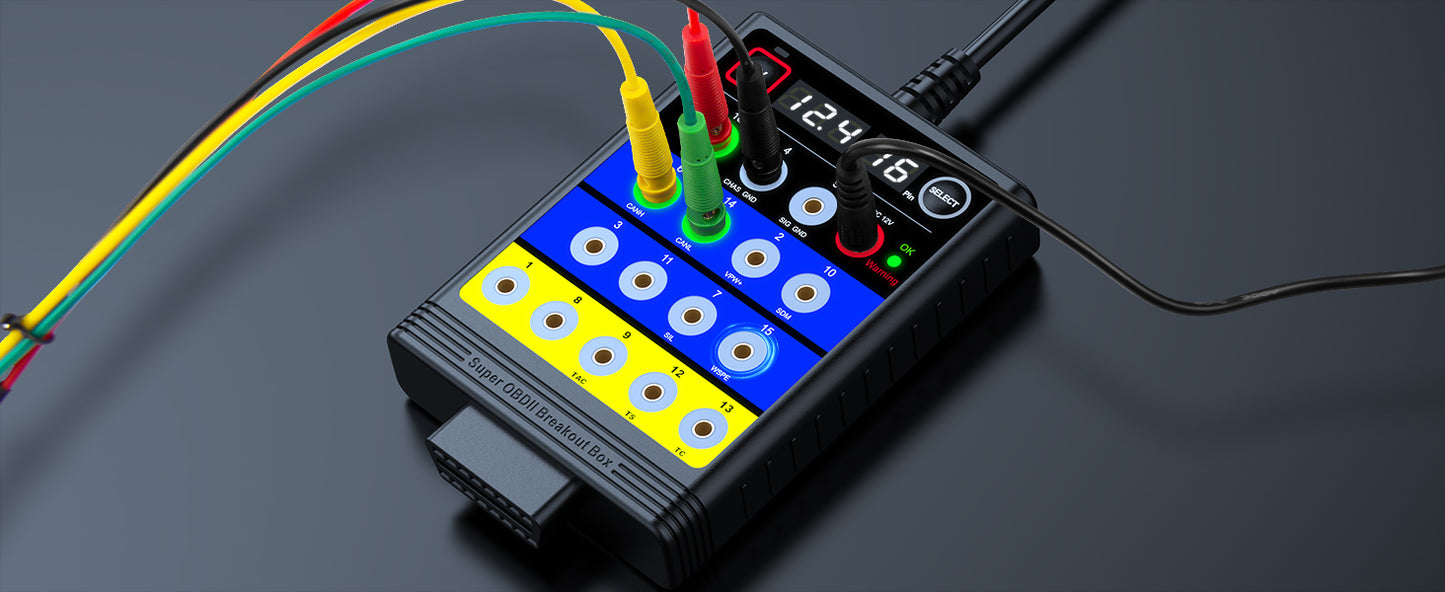

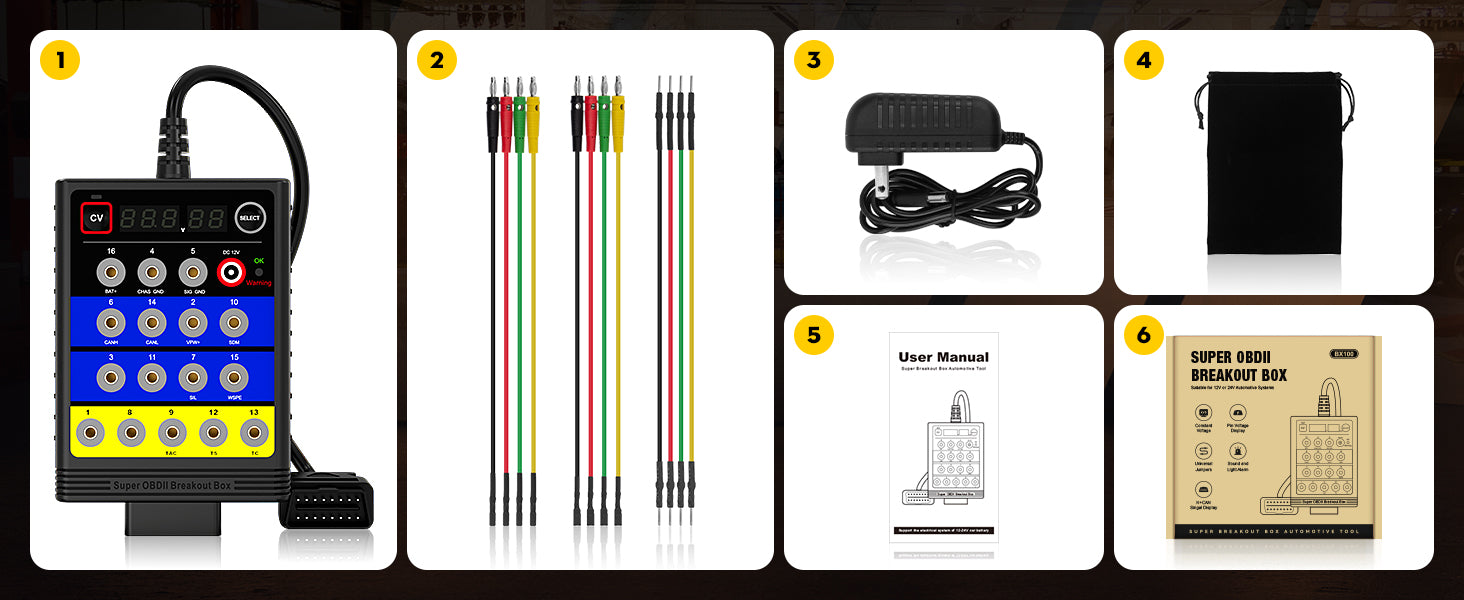

Includes 12 flexible extension cables with safe jackets and banana plug compatibility, offering maximum reach and connection flexibility for advanced diagnostics.
🛠️ Universal 16-Pin OBD-II Layout

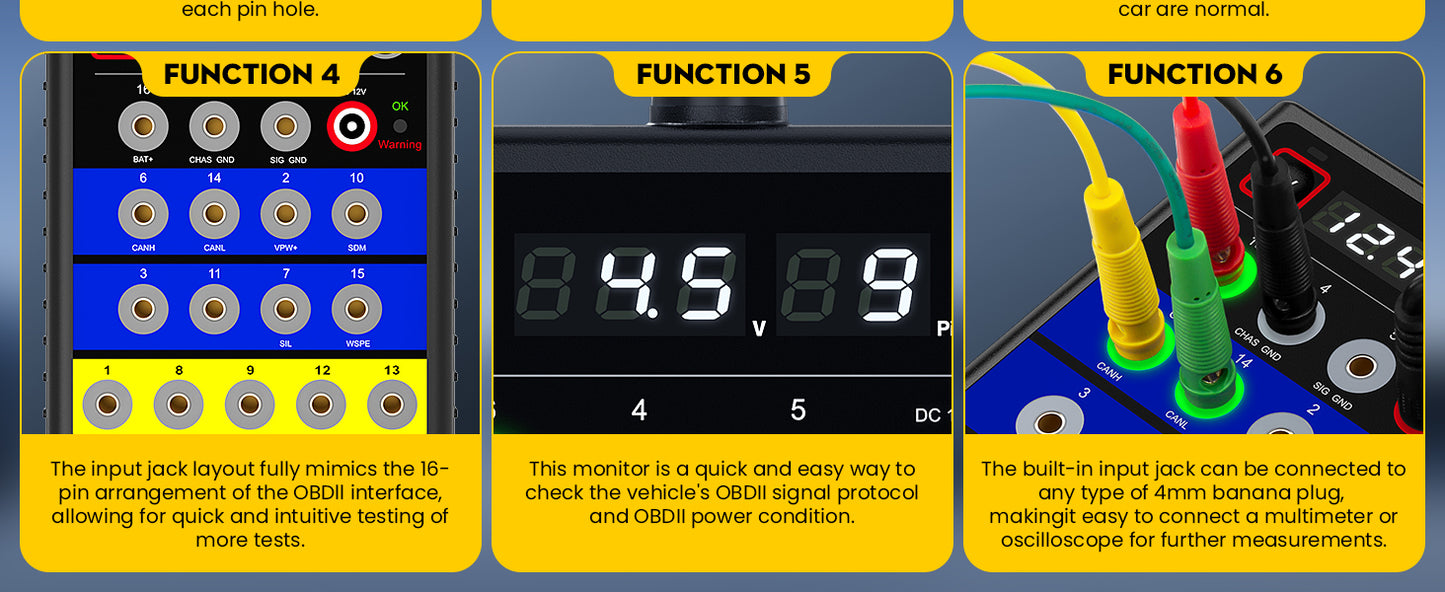

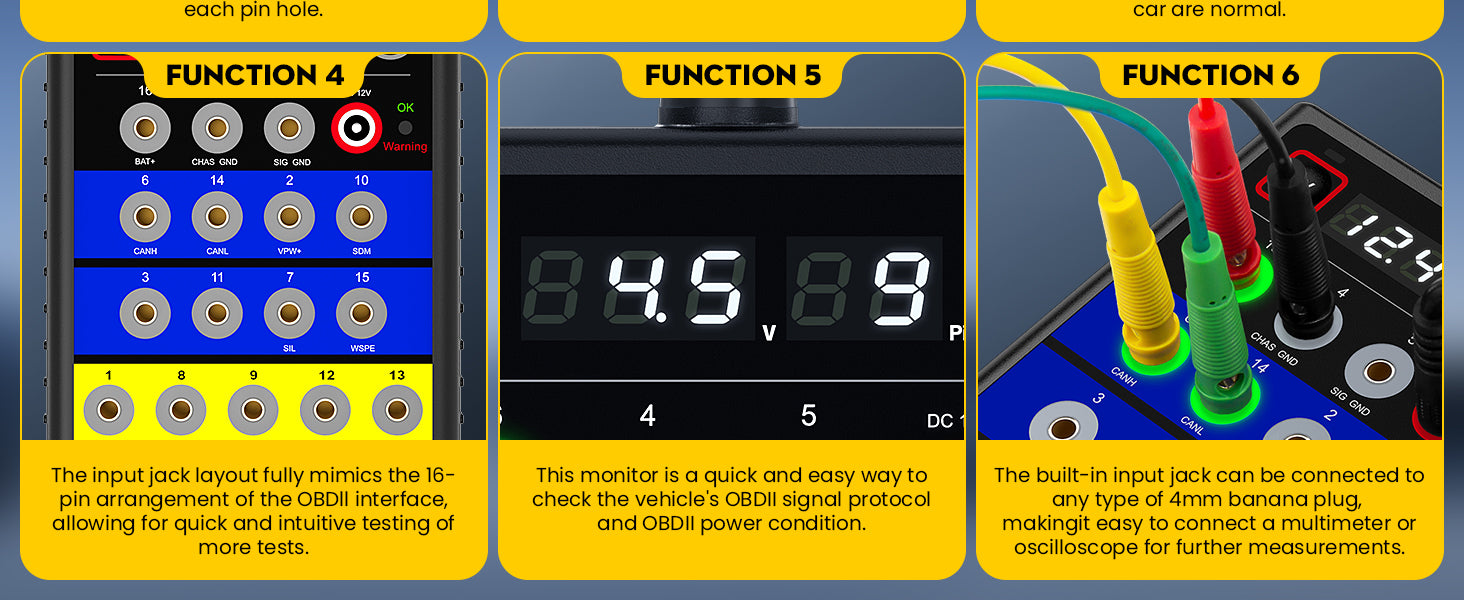

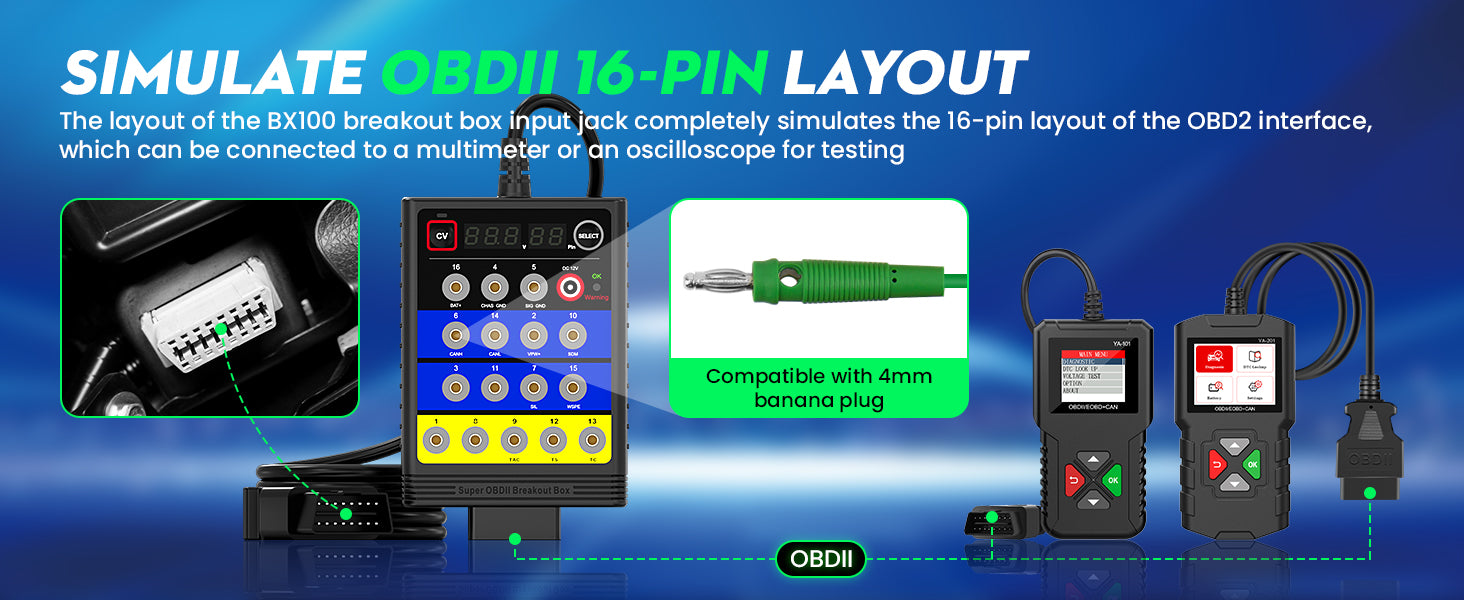

The breakout box’s input jack replicates the OBD-II standard 16-pin interface, making it intuitive to connect and access test points without modifying connectors.
Typical Applications
- ECU bench testing and validation
- Diagnostic signal verification on OBD-II systems
- Voltage checks on power and ground circuits
- CAN protocol monitoring and troubleshooting
- Multimeter and oscilloscope integration for advanced analysis
- Automotive electrical training and educational use
Who Should Use This Tool
This breakout box is ideal for:
- ✅ Professional Automotive Technicians
- ✅ Automotive Repair Shops & Diagnostic Centers
- ✅ Advanced DIY Hobbyists
- ✅ Automotive Training & Technical Schools
Not recommended for basic car owners needing only simple diagnostics.
Specifications

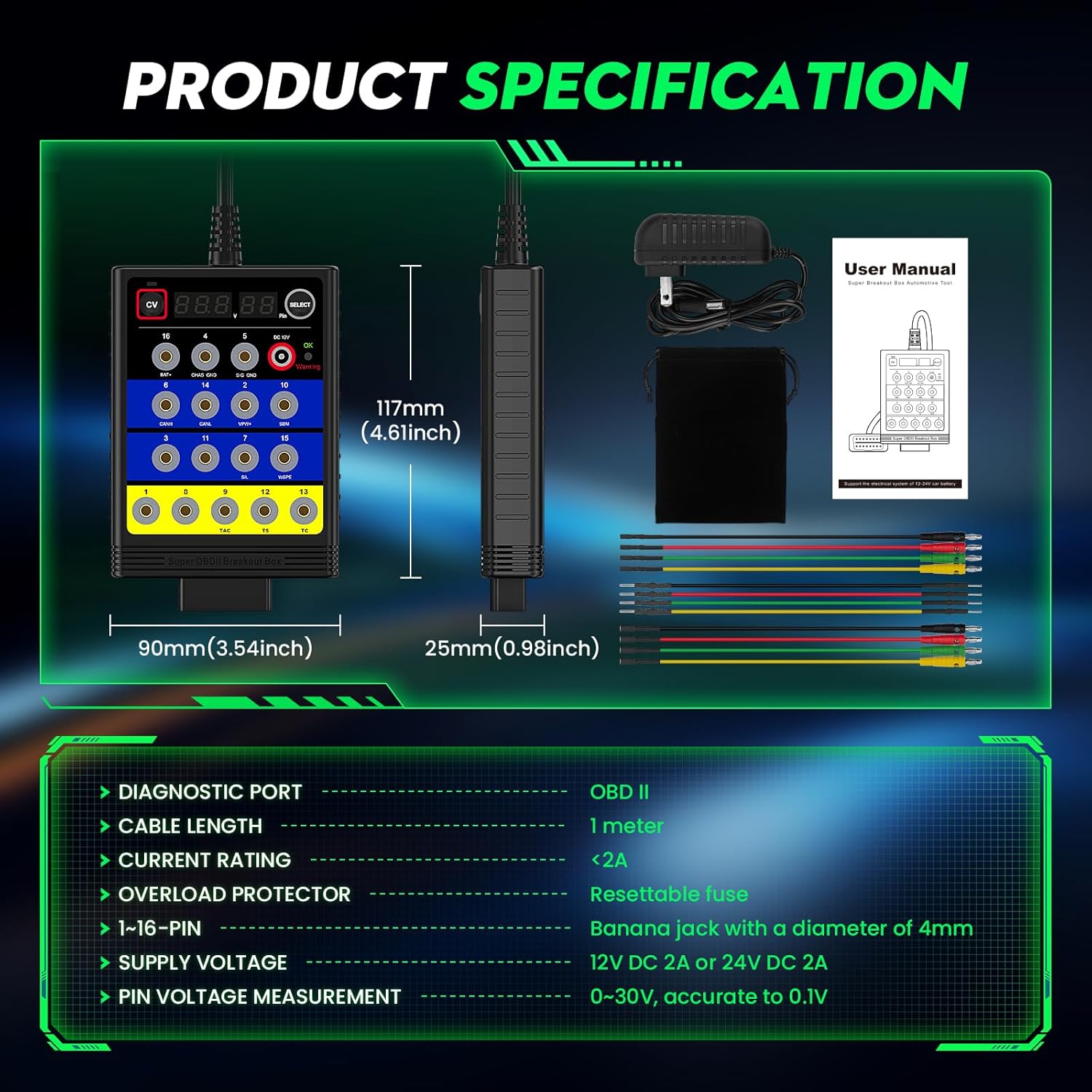

- Product Type: OBD-II Breakout Box & Protocol Detector
- Model Number: BX100
- Voltage Output: Constant 13.8V (Selectable)
- Protection: Short Circuit Protection
- Extension Cables: 12 Flexible Cables Included
- Interface: Standard 16-Pin OBD-II Layout
- Compatibility: Most OBD-II Equipped Vehicles (CAN/LIN/ISO)
