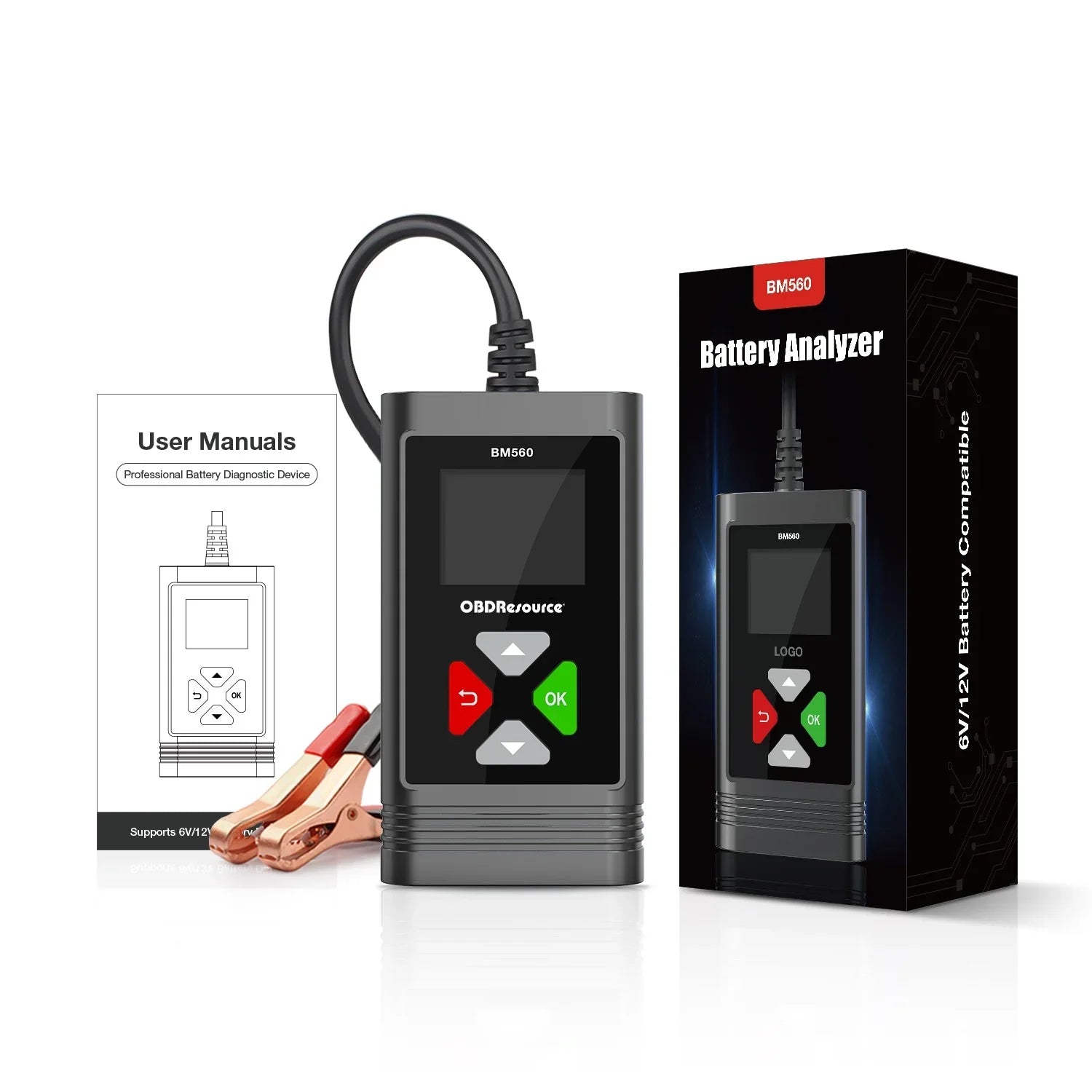

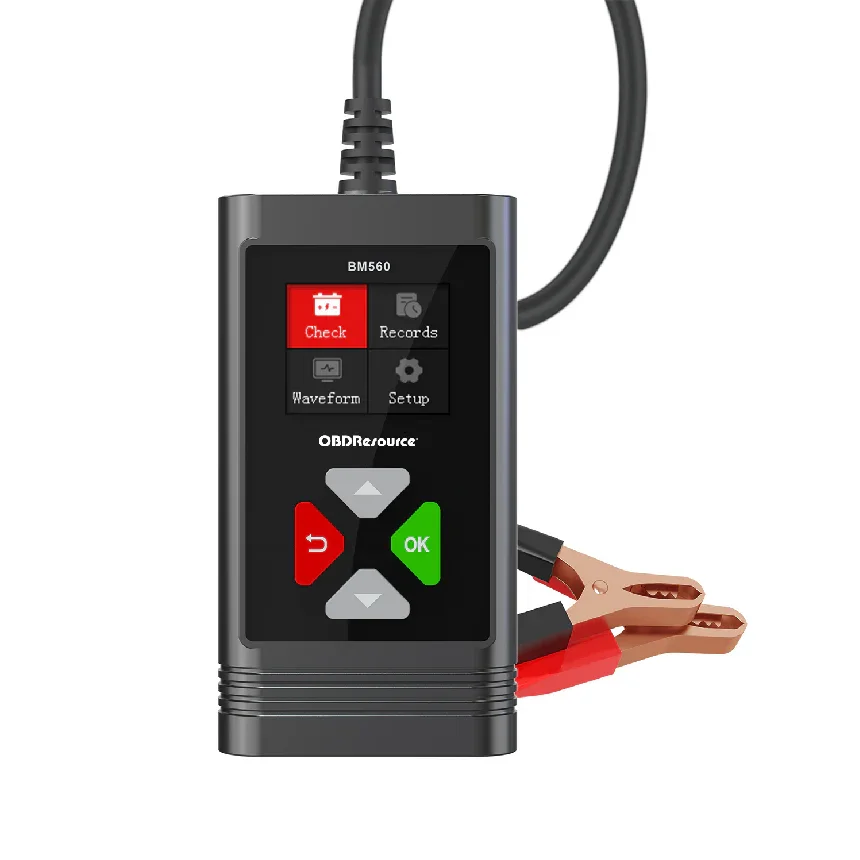

OBDResource BM560 Pro Smart Battery Tester – 6V 12V Color Screen Analyzer with Live Waveform

Elevate your diagnostic game with the OBDResource BM560. Designed for precision and visual clarity, this professional battery tester goes beyond simple numbers. With its vibrant color display and real-time graphing, you can see exactly how your battery performs under load, making it the ultimate tool for both expert mechanics and high-end DIYers.

Visualize the Truth with HD Color Diagnostics

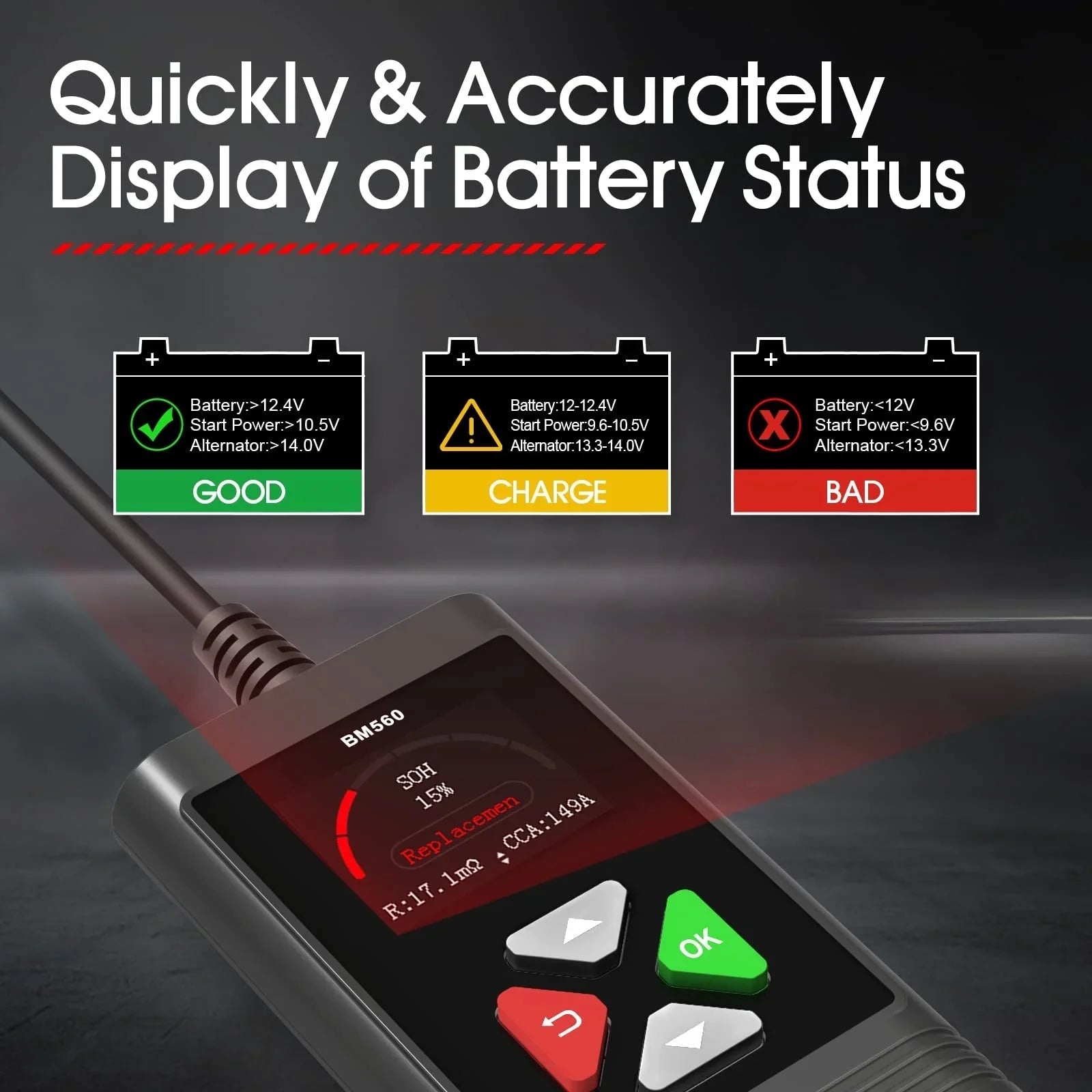

The OBDResource BM560 stands out with its 1.8-inch high-definition color screen. It’s not just about aesthetics—the color-coded interface and live data streams allow you to identify battery health (SOH) and charging status (SOC) at a glance, even in low-light garage environments.

Top-Tier Features & SEO Highlights

📈 Real-Time Voltage Waveform Monitoring

Don't just read the voltage—track it! The BM560 features a live waveform monitor that captures voltage fluctuations during starting and charging. This allows you to detect "hidden" battery weaknesses and alternator ripples that standard testers simply can't see.

📸 Exclusive One-Click Screenshot

A game-changer for professional shops! Long-press the up/down buttons to capture a digital screenshot of the test results. Store the data and transfer it to your PC via USB to provide your customers with a professional diagnostic report.

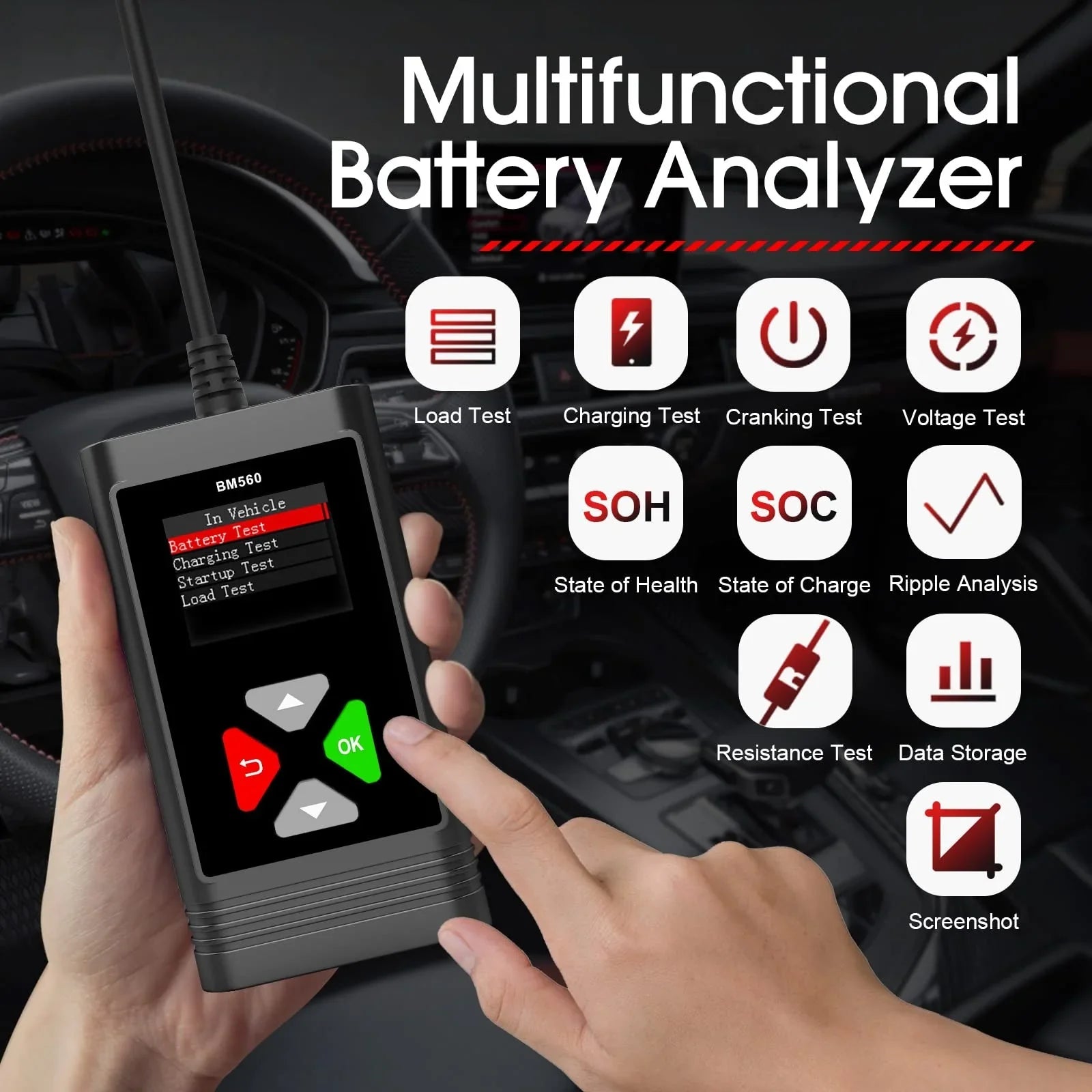

⚡ Comprehensive 3-in-1 System Analysis

The BM560 is a complete automotive diagnostic tool for your 6V and 12V systems:

• Battery Test: Analyzes SOH, SOC, Internal Resistance, and CCA.

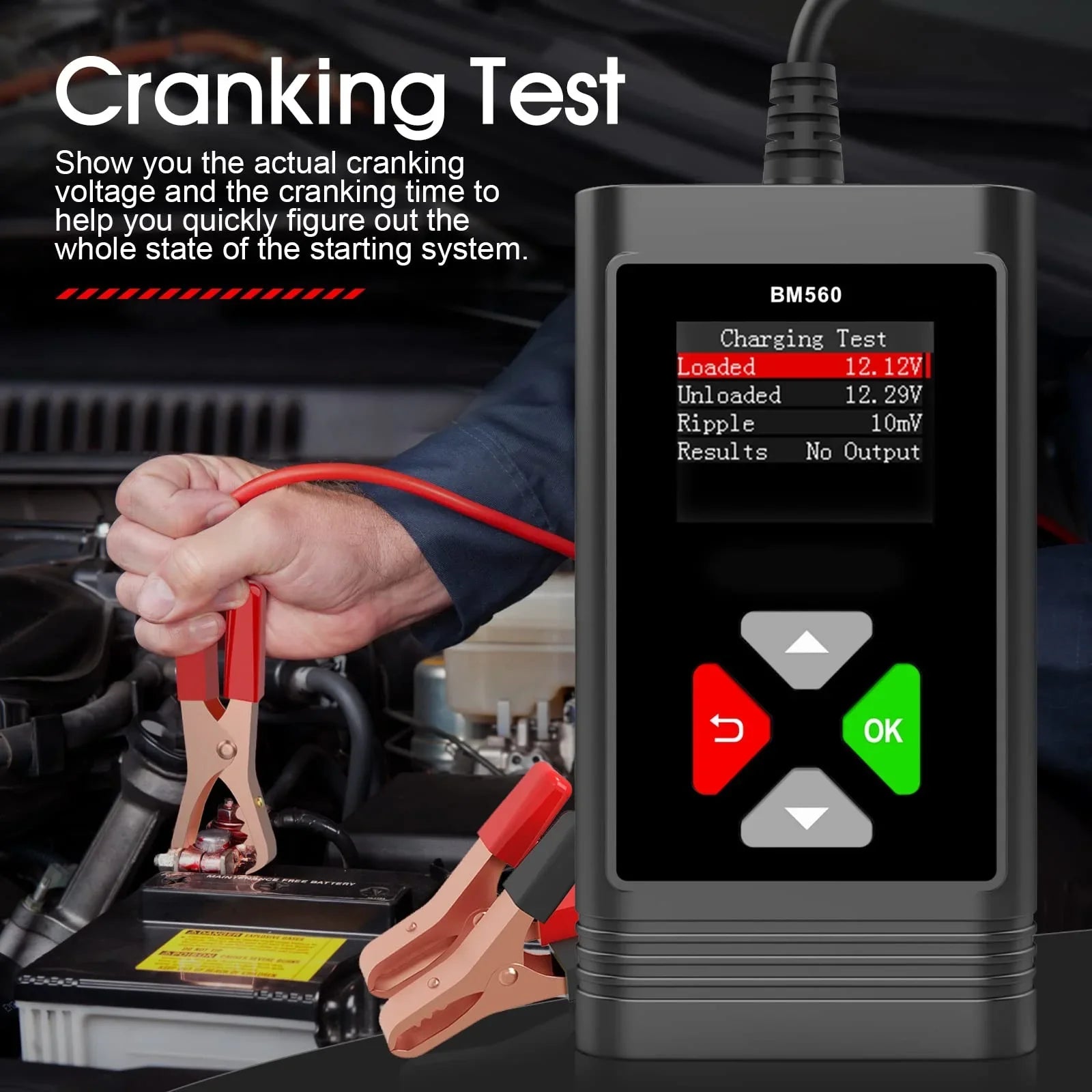

• Cranking Test: Measures the cranking voltage and time to evaluate the starter motor.

• Charging Test: Tests the alternator’s load voltage and ripple to ensure the charging system is healthy.

🔄 Multi-Protocol & Wide Compatibility

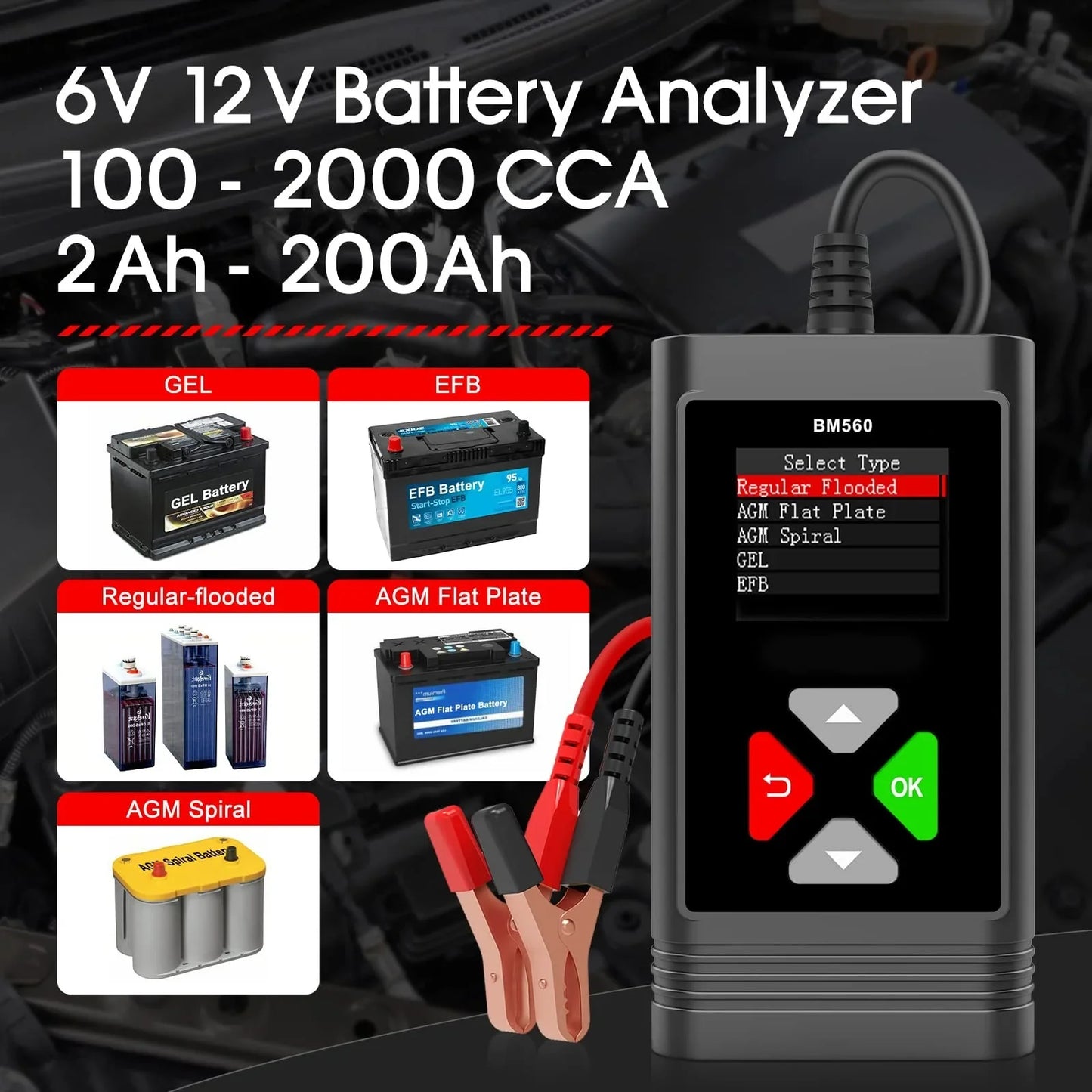

The OBDResource BM560 supports all major battery standards: CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, and GB. It is compatible with a wide range of battery types, including Regular Flooded, AGM Flat Plate, AGM Spiral, GEL, and EFB.

Technical Specifications

• Brand: OBDResource

• Model: BM560

• Voltage Range: 6V / 12V

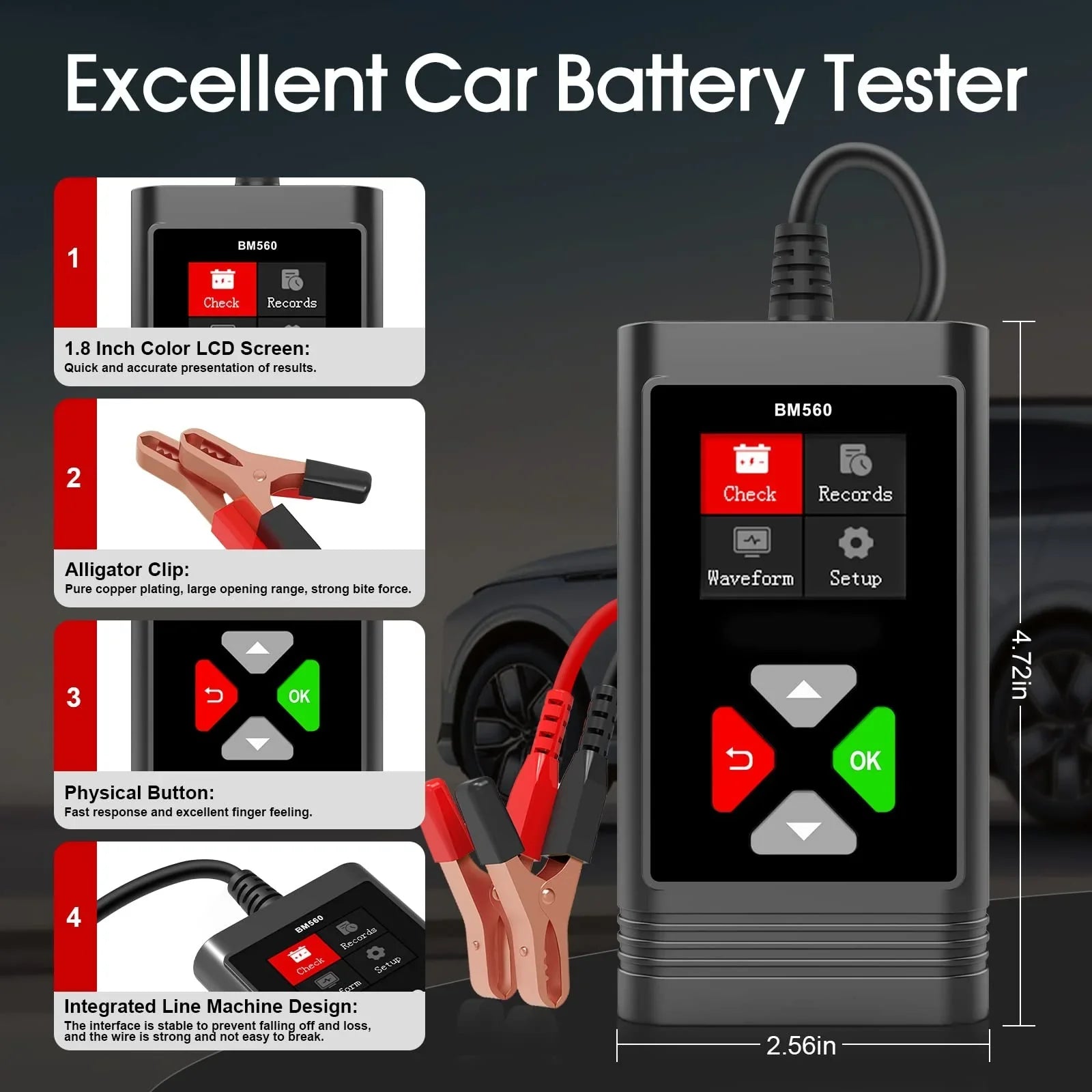

• Screen: 1.8" TFT Color Display

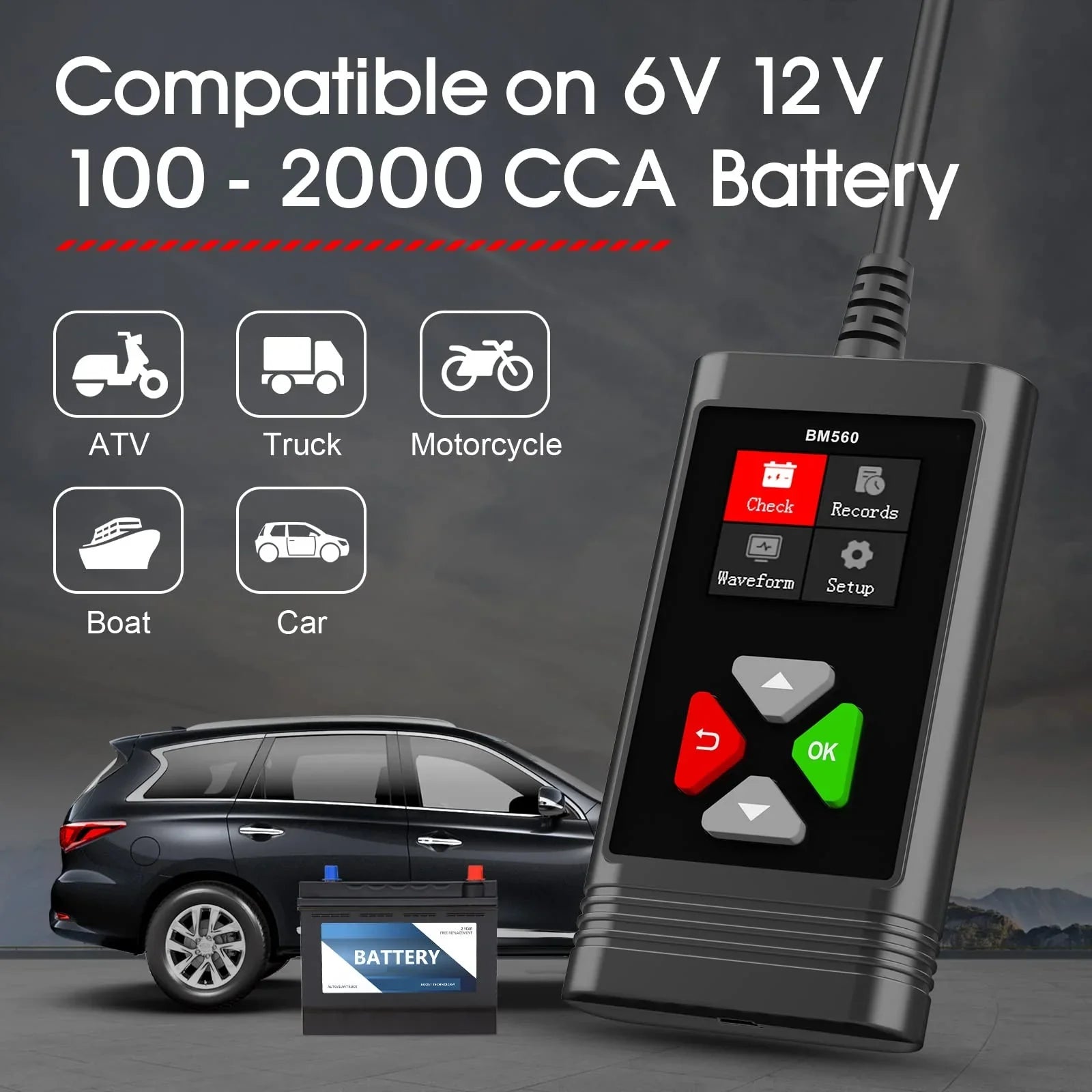

• Testing Range: 100 - 2000 CCA

• Special Functions: Waveform Monitoring, Screenshot, PC Data Export

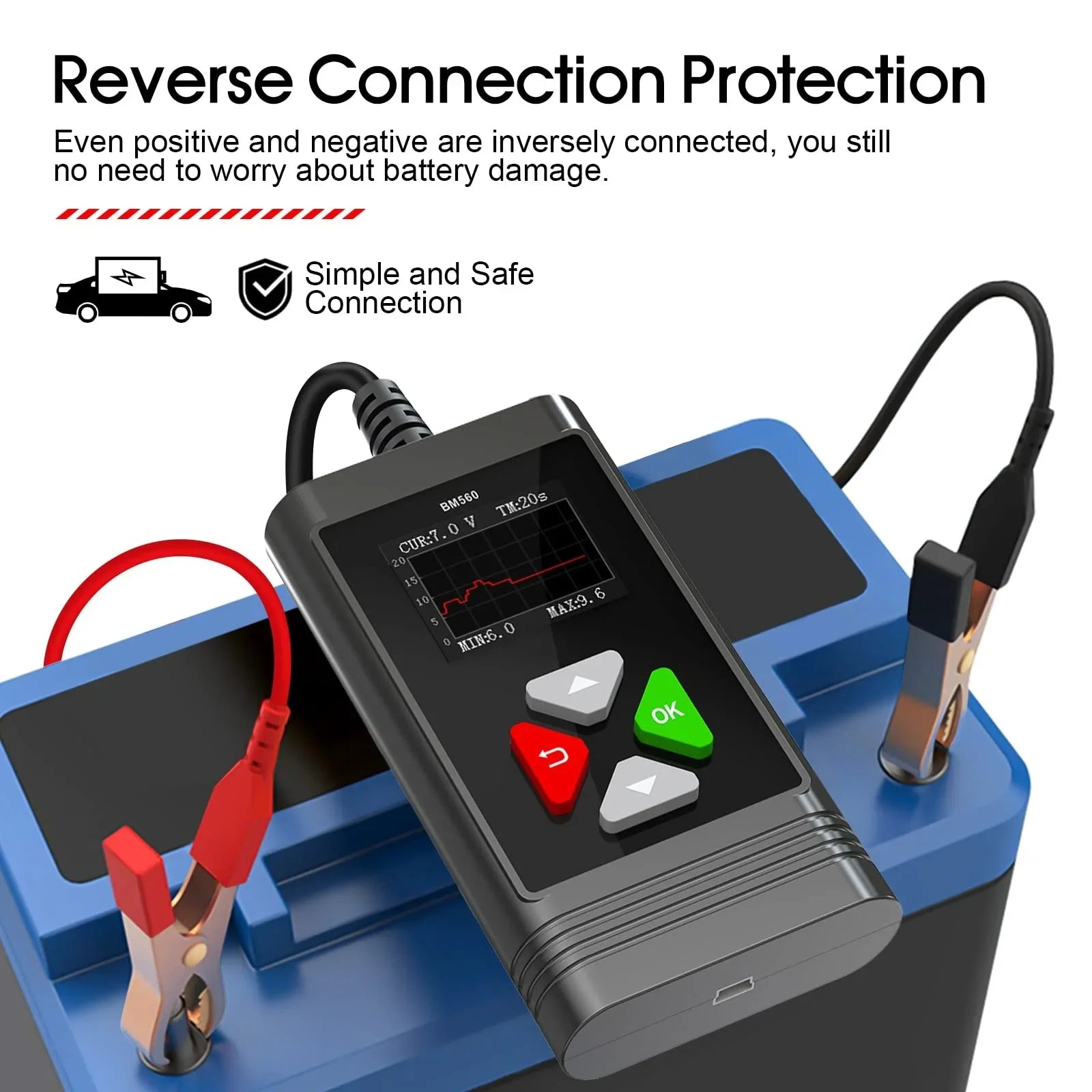

• Safety: Reverse Polarity and Over-voltage Protection

Why the BM560 is the Professional Choice

In a competitive workshop, "proof" is power. The ability to show a customer a live cranking waveform or a high-res screenshot of their failing battery builds instant trust. The OBDResource BM560 combines laboratory precision with user-friendly technology to ensure you never misdiagnose a battery again.
