Ignition timing plays a major role in how a gasoline engine starts, idles, accelerates, and performs under load. If timing is too advanced or too retarded, the engine may suffer from rough idle, poor fuel economy, weak acceleration, overheating, or spark knock.

For DIY car enthusiasts, auto repair technicians, and classic car owners, learning how to adjust ignition timing with a timing light is a valuable skill. In this guide, we will explain the basics of ignition timing and show how the OBDResource TL123 Digital Ignition Timing Light can be used to check and help adjust timing accurately.

If you have been searching for a clear explanation of how to check ignition timing, how to set ignition timing with a timing light, or how a digital ignition timing light for cars works, this article is for you.

What Is Ignition Timing?

Ignition timing is the moment when the spark plug fires in relation to the piston position inside the cylinder.

In gasoline engines, the spark usually happens slightly before the piston reaches top dead center. This is called ignition advance or spark advance. The purpose is to give the air-fuel mixture enough time to burn so combustion pressure reaches its peak at the right point in the power stroke.

This timing is often expressed in degrees BTDC, which means Before Top Dead Center.

Common examples include:

• 8° BTDC
• 10° BTDC
• 12° BTDC

If ignition timing is too retarded, the engine may feel slow and inefficient. If it is too advanced, the engine may ping, knock, or run harshly under load. Proper timing helps the engine run smoother, respond better, and use fuel more efficiently.

Why Ignition Timing Matters

Correct ignition timing affects several key areas of engine performance:

• Idle stability
• Throttle response
• Acceleration
• Fuel economy
• Engine temperature
• Combustion efficiency

When timing is not correct, you may notice symptoms such as hard starting, rough idle, weak power, poor fuel mileage, hesitation, or knocking during acceleration.

That is why ignition timing remains an important inspection item on many older gasoline vehicles, classic cars, distributor-based ignition systems, and performance-tuned engines.

Which Vehicles Can Have Ignition Timing Adjusted?

Not every vehicle allows manual ignition timing adjustment.

In most cases, manual timing adjustment is associated with:

• Older gasoline vehicles
• Distributor ignition systems
• Carbureted engines
• Some early electronic ignition systems

Many modern cars use ECU-controlled ignition timing, which means timing is managed electronically and may not be adjustable in the traditional way. In those vehicles, a timing light is still useful for diagnosis and verification, but not always for direct mechanical adjustment.

Before making any changes, always confirm whether your vehicle has an adjustable ignition system.

Why Use the OBDResource TL123?

The OBDResource TL123 Digital Ignition Timing Light is a practical tool for checking ignition timing on compatible gasoline vehicles. It helps users visually inspect timing marks, verify timing position, and support tune-up and ignition diagnostics.

For automotive technicians and DIY users, the TL123 is especially useful for:

• Checking base ignition timing
• Verifying ignition advance behavior
• Monitoring engine RPM during testing
• Supporting distributor timing adjustment
• Troubleshooting ignition-related drivability issues

If you are looking for a timing light for cars or a digital ignition timing light for routine repair and maintenance, the TL123 is a useful addition to the toolbox.

How a Timing Light Works

A timing light flashes in sync with the spark event of the number one cylinder. When you point the light at the timing marks on the crankshaft pulley, harmonic balancer, or flywheel, the flashing effect makes the marks appear stationary.

This visual effect allows you to see exactly where the ignition event is happening relative to the engine’s timing scale.

In simple terms, a timing light helps you “freeze” the timing mark so you can compare it to the factory specification.

Before Checking or Adjusting Ignition Timing

Before using a timing light, make sure the engine is in reasonably good operating condition. Timing should not be adjusted blindly if there are other unresolved problems.

It is a good idea to check the following first:

• Spark plugs
• Spark plug wires
• Ignition coil condition
• Battery voltage
• Idle speed
• Vacuum leaks
• Fuel delivery condition

If the engine has unstable idle, low system voltage, misfires, or intake leaks, your timing reading may not be reliable.

How to Connect the OBDResource TL123 Timing Light

The basic setup process is simple on most compatible vehicles.

Step 1: Turn the engine off

Make all tool connections with the engine off before starting the test.

Step 2: Connect the power clamps

Attach the red clamp to the battery positive terminal and the black clamp to the battery negative terminal or a suitable ground.

Step 3: Connect the inductive pickup

Clamp the inductive pickup onto the number one spark plug wire. Make sure the pickup is installed in the correct direction.

Step 4: Start the engine

After everything is connected correctly, start the engine and prepare to observe the timing marks.

How to Check Ignition Timing with a Timing Light

If you want to learn how to check ignition timing with a timing light, follow this general process.

Warm up the engine

The engine should be at normal operating temperature before timing is checked. A cold engine may produce unstable readings.

Confirm the correct test condition

Some vehicles require a certain idle speed, disconnected vacuum advance, or a service mode before base timing can be checked. Always follow the vehicle manufacturer’s specification.

Locate the timing marks

Find the timing pointer and timing marks on the crankshaft pulley, harmonic balancer, or flywheel. Clean them if necessary to make them easier to see.

Aim the timing light

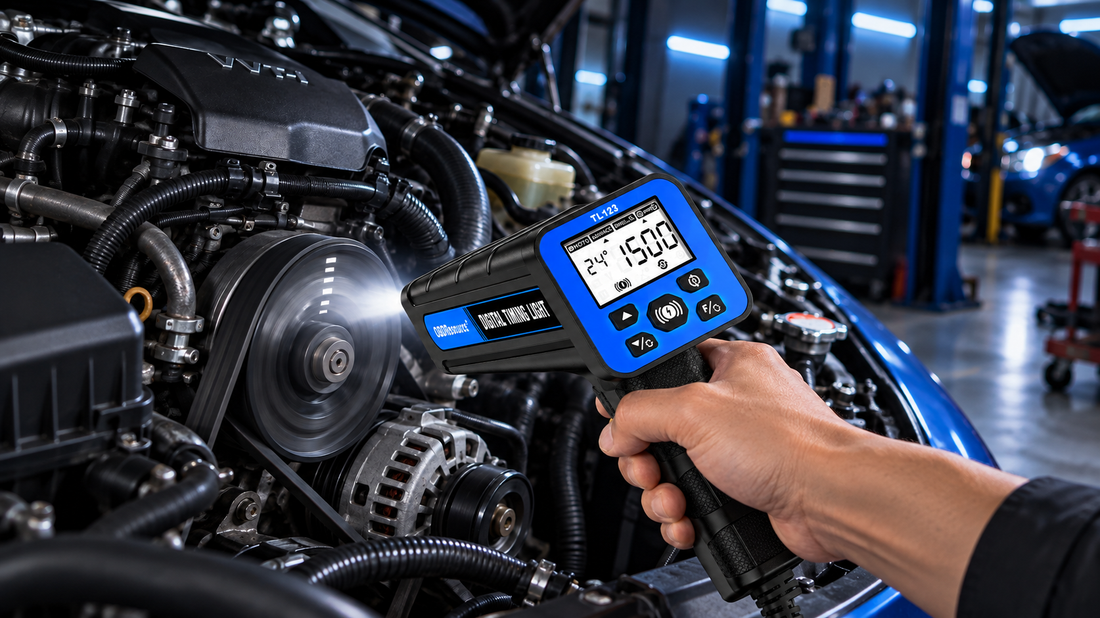

Point the OBDResource TL123 at the timing marks while the engine is idling. The flashing light will visually freeze the mark.

Compare the reading to factory specification

Check whether the timing mark lines up with the specified setting, such as 8° BTDC or 10° BTDC.

If the mark does not align correctly and the vehicle has an adjustable ignition system, timing adjustment may be required.

How to Adjust Ignition Timing

If your vehicle uses a distributor-based adjustable ignition system, the general adjustment procedure is usually as follows.

Loosen the distributor hold-down bolt

Loosen the bolt slightly so the distributor can be rotated with control.

Keep the timing light aimed at the marks

With the engine running, continue observing the timing marks using the TL123.

Rotate the distributor slowly

Turn the distributor in very small increments. Small movement can make a noticeable change in timing.

Watch the timing mark shift

As the distributor moves, the timing mark will shift relative to the scale.

Stop at the correct specification

Adjust until the mark aligns with the required timing value.

Tighten and recheck

Tighten the distributor hold-down bolt and check timing again to confirm the setting did not move.

This is the standard process for people learning how to set ignition timing with a timing light on older adjustable systems.

How to Check Ignition Advance

In addition to base timing, it is also important to observe how ignition timing changes as engine speed increases.

As RPM rises, timing usually advances further. This is part of normal ignition strategy. If advance does not change correctly, the engine may feel sluggish, hesitate, or knock under load.

Using the OBDResource TL123, technicians can monitor timing behavior during RPM changes to help evaluate whether ignition advance appears normal.

This can be useful when diagnosing:

• Poor acceleration
• Hesitation
• Engine pinging
• Vacuum advance problems
• Distributor mechanical advance issues
• Irregular advance curve behavior

Common Symptoms of Incorrect Ignition Timing

You may need to check ignition timing if you notice any of the following:

• Hard starting
• Rough idle
• Poor acceleration
• Weak engine response
• Poor fuel economy
• Engine knocking or pinging
• Excessive engine heat
• Sluggish performance under load

These symptoms do not always mean ignition timing is the only problem, but timing is an important part of the diagnostic process.

Important Safety Tips When Using a Timing Light

Always use caution when working around a running engine.

Keep these safety points in mind:

• Keep hands, tools, clothing, and jewelry away from belts and fans
• Work in a well-ventilated area
• Stay clear of hot exhaust components
• Make sure the vehicle is in Park or Neutral with the parking brake applied
• Route test leads away from moving parts
• Use caution around high-voltage ignition components

A timing light is simple to use, but safe working habits are essential.

Common Mistakes to Avoid

When learning how to adjust ignition timing, many people make the same avoidable mistakes.

Not checking the factory timing specification

There is no single timing setting that works for every engine. Always use the correct spec for the exact vehicle.

Ignoring idle speed

Timing should be checked under the correct idle condition. If idle speed is too high or unstable, the reading may be misleading.

Forgetting special setup requirements

Some engines require the vacuum advance line to be disconnected or a diagnostic mode to be activated before checking timing.

Adjusting a non-adjustable system

Many modern electronically controlled engines cannot be adjusted by rotating a distributor.

Making large distributor movements

A small turn can change timing significantly. Large adjustments can easily overshoot the correct setting.

Why the OBDResource TL123 Is a Good Choice

For users who need a reliable automotive ignition timing light, the OBDResource TL123 offers a practical solution for checking timing, supporting tune-ups, and troubleshooting ignition system behavior.

It is especially useful for:

• Classic car maintenance
• Distributor timing adjustment
• Tune-up work
• Garage diagnostics
• Repair shop service
• General ignition troubleshooting

If your goal is to understand how to use a timing light on a car, the TL123 gives you a simple and effective way to inspect timing in real time.

Final Thoughts

Ignition timing has a direct effect on engine performance, efficiency, and drivability. Learning how to check and adjust ignition timing with a timing light can help you diagnose problems more accurately and improve engine behavior on compatible vehicles.

The OBDResource TL123 Digital Ignition Timing Light is a practical tool for anyone working on older gasoline engines, distributor-equipped systems, or tune-up and timing-related repairs.

The most important thing to remember is this: a timing light helps you measure and verify ignition timing, but the correct timing value and adjustment method always depend on the vehicle manufacturer’s specification.

If you regularly work on ignition systems, adding the OBDResource TL123 to your workflow can make timing checks faster, clearer, and more precise.

---

FAQ

What is the easiest way to check ignition timing?

The easiest way is to use a timing light connected to the number one spark plug wire and point it at the timing marks while the engine is running.

Can I adjust ignition timing on any car?

No. Many modern vehicles use ECU-controlled ignition timing and do not allow traditional manual adjustment.

What happens if ignition timing is too advanced?

Timing that is too advanced can cause engine knock, pinging, overheating, and poor drivability under load.

What happens if ignition timing is too retarded?

Timing that is too retarded can lead to weak acceleration, rough running, poor fuel economy, and sluggish engine response.

Is a digital timing light better than a basic timing light?

A digital timing light can offer more testing convenience, especially when checking timing behavior, RPM, or ignition-related diagnostic conditions.

Why use the OBDResource TL123?

The OBDResource TL123 is a practical ignition timing light for users who need to inspect timing marks, support tune-up work, and diagnose timing-related issues on compatible gasoline vehicles.

---
